image | Series | Features | Description | catalog | Specification | RoHS | REACH | Part No. | Application |
---|---|---|---|---|---|---|---|---|---|
![]() |

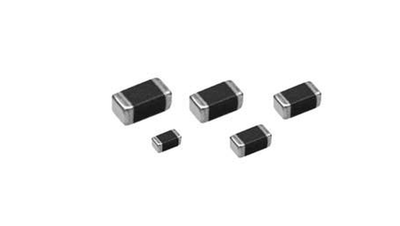

CMF2012&3216&4532 Series | 1.High common mode impedance at high frequency effects excellent noise suppression performance. 2.20Ω~2000Ω are optional for different noise level and signal frequency | ![]() |
![]() |
![]() |
Application Guide | |||
![]() |

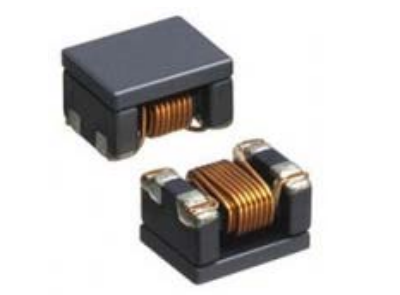

ALCM-0905C | 1.High common mode impedance at high frequency effects excellent noise suppression performance. 2.20Ω~2000Ω are optional for different noise level and signal frequency | ![]() |
![]() |
![]() |
Application Guide | |||
![]() |
ALCM-100805 | ![]() |
![]() |
![]() |
Application Guide | ||||
![]() |
ALCMI-5020&5040 | Chip Common Mode Choke Coil;Fit for power line & signal line circuit; | ![]() |
![]() |
![]() |
Application Guide | |||
![]() |
WCI 0402-1812IF | ![]() |
![]() |
![]() |
Application Guide | ||||
![]() |
WCI0402-1210U | ![]() |
![]() |
![]() |
Application Guide | ||||
![]() |
FWP1265 Series | Used in industrial control motherboard, distribution power system, DC/DC conversion,LED driver power supply, communication equipment, medical equipment, military equipment, etc. | ![]() |
![]() |
![]() |
Application Guide | |||
![]() |
FWP1809 Series | Used in industrial control motherboard, distribution power system, DC/DC conversion,LED driver power supply, communication equipment, medical equipment, military equipment, etc. | ![]() |
![]() |
![]() |
Application Guide | |||
![]() |
FWP0650 Series | Used in industrial control motherboard, distribution power system, DC/DC conversion,LED driver power supply, communication equipment, medical equipment, military equipment, etc. | ![]() |
![]() |
![]() |
Application Guide | |||
![]() |
FWP1050 Series | Used in industrial control motherboard, distribution power system, DC/DC conversion,LED driver power supply, communication equipment, medical equipment, military equipment, etc. | ![]() |
![]() |
![]() |
Application Guide | |||
![]() |
FWP2918 Series | Used in industrial control motherboard, distribution power system, DC/DC conversion,LED driver power supply, communication equipment, medical equipment, military equipment, etc. | ![]() |
![]() |
![]() |
Application Guide | |||
![]() |
MCB Series | A unique terminal electrode structure ensures ensures permissible current 6.0A (max). High impedance and EMI suppression effective over a wide frequency range. Suitable reflow and wave soldering. | ![]() |
Application Guide |
Surface mount power inductors for a variety of applications from power supplies to power converters. Core types include ferrite and powdered iron, and topologies include: unshielded, shielded, powdered iron, ferrite-coated, and wirewound chip inductors.
SMD magnetic shielding shell is assembled by drum core and ring core. A shielded toroid will be used to cover the area around the coil, providing a closed magnetic circuit for these products to achieve low EMI levels. The advantage of shielded inductors is to block any external influence from external and internal magnetic forces. This shielded inductor offers constant DC superposition, cost-effectiveness, low core loss, excellent efficiency, wide inductance range, and low DCR due to good construction/large winding space.
Aillen offer shielded power inductors in a variety of industry standard packages from as small as 3.0mm to 12.0mm. The inductance range is from 1.0uh (1R0) to 1500uH (152), and the inductance value can be customized (customized characteristics of SMD shielded power inductors). We also use two drum cores, Ni-Zn and Mn-Zn. Both material powders have high relative permeability (μ), but the Mn-Zn core has higher current carrying capacity and lower RDC. In addition, for applications with higher mechanical stability or voltage requirements, a plastic base can also be used. We offer a wide range of power inductor series such as power inductors, high power inductors or other circuits
Read More
