image Series Features Description catalog Specification RoHS REACH Part No. Application

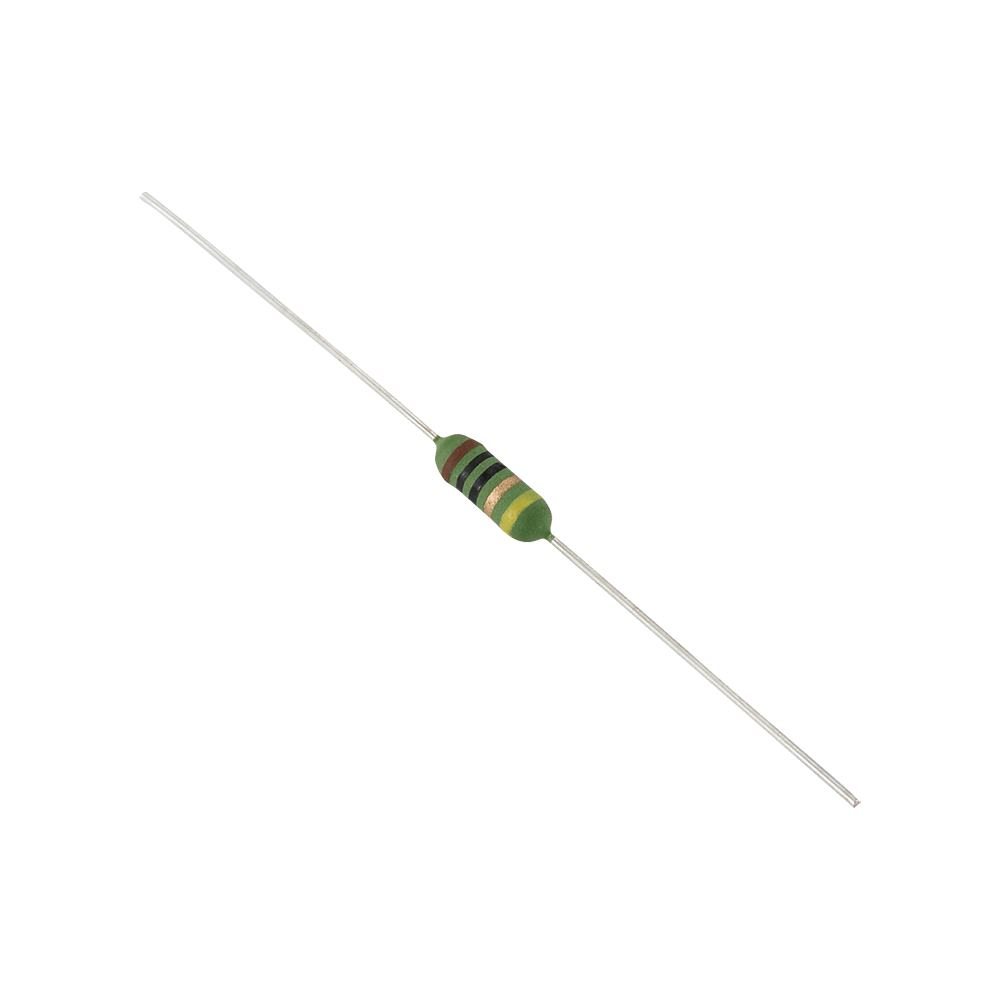

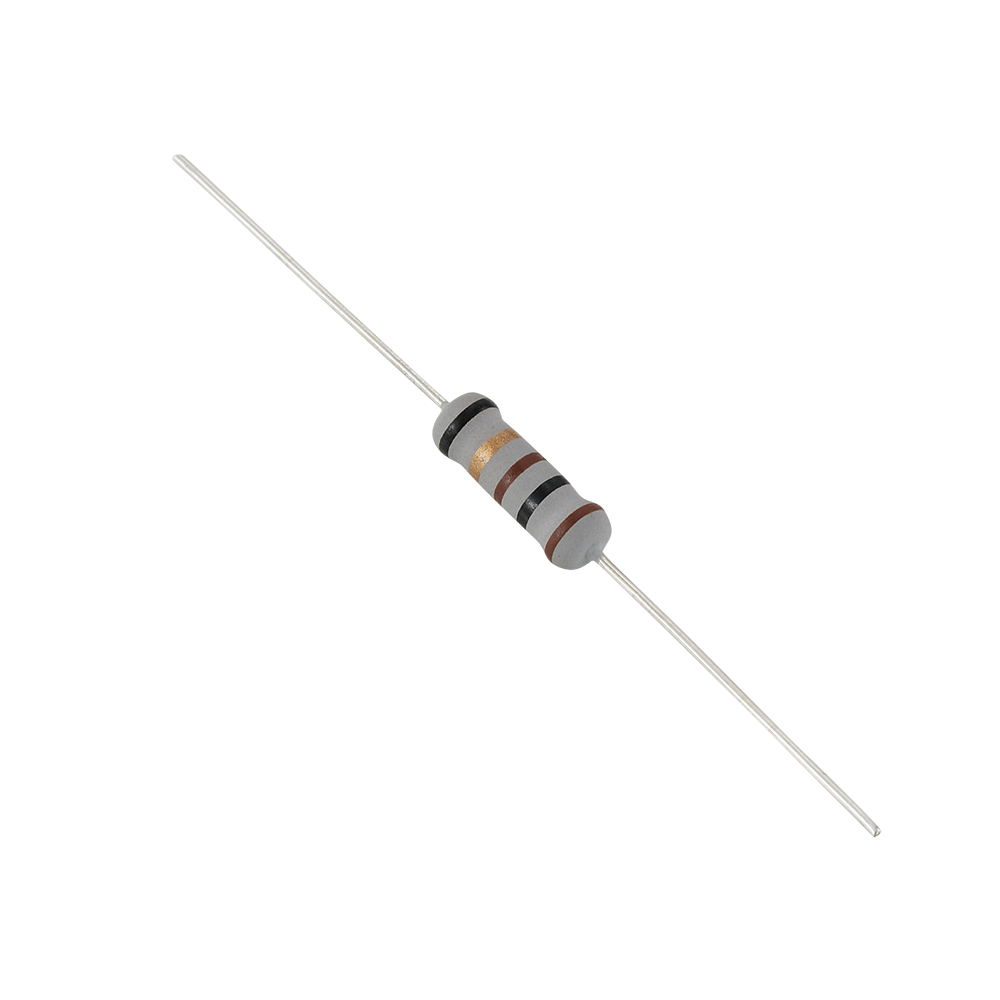

Fusible Wire Wound Resistors(Small Tyep) RFKN-S Fusible Wire Wound Resistors(Small Tyep) Application Guide

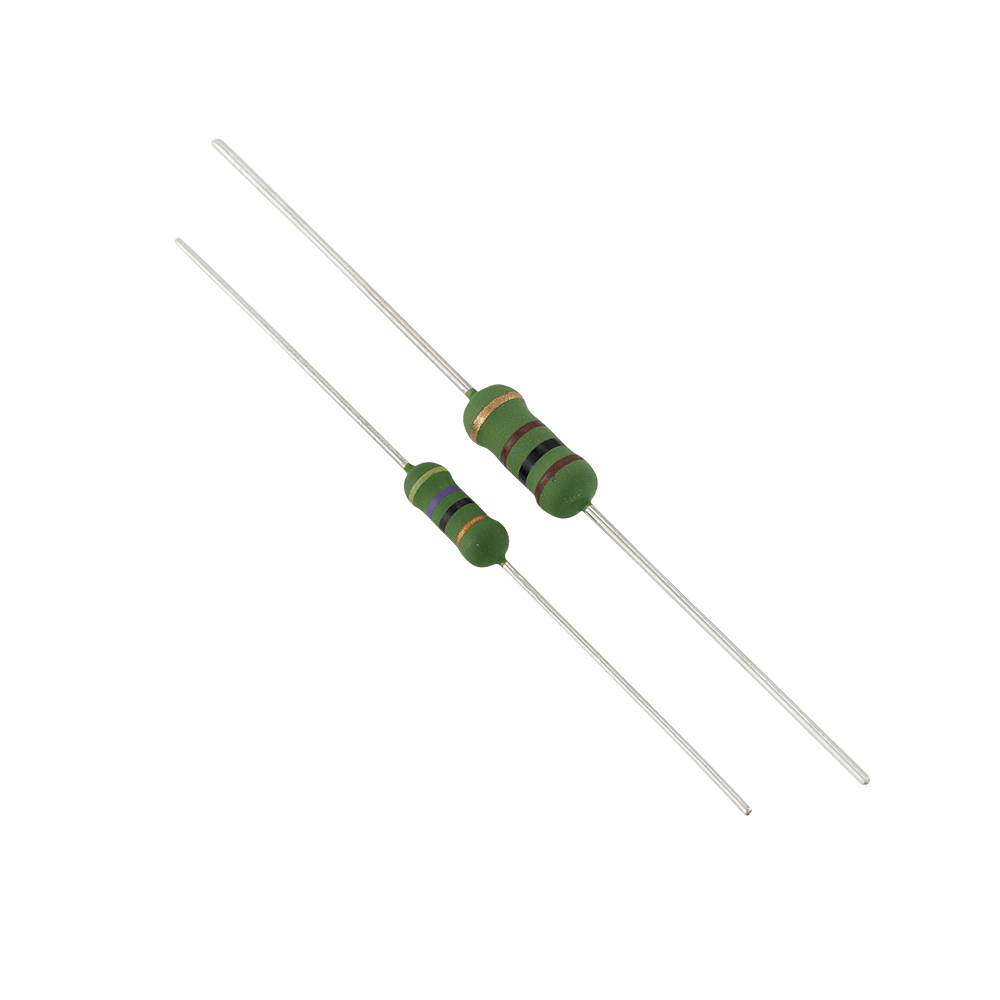

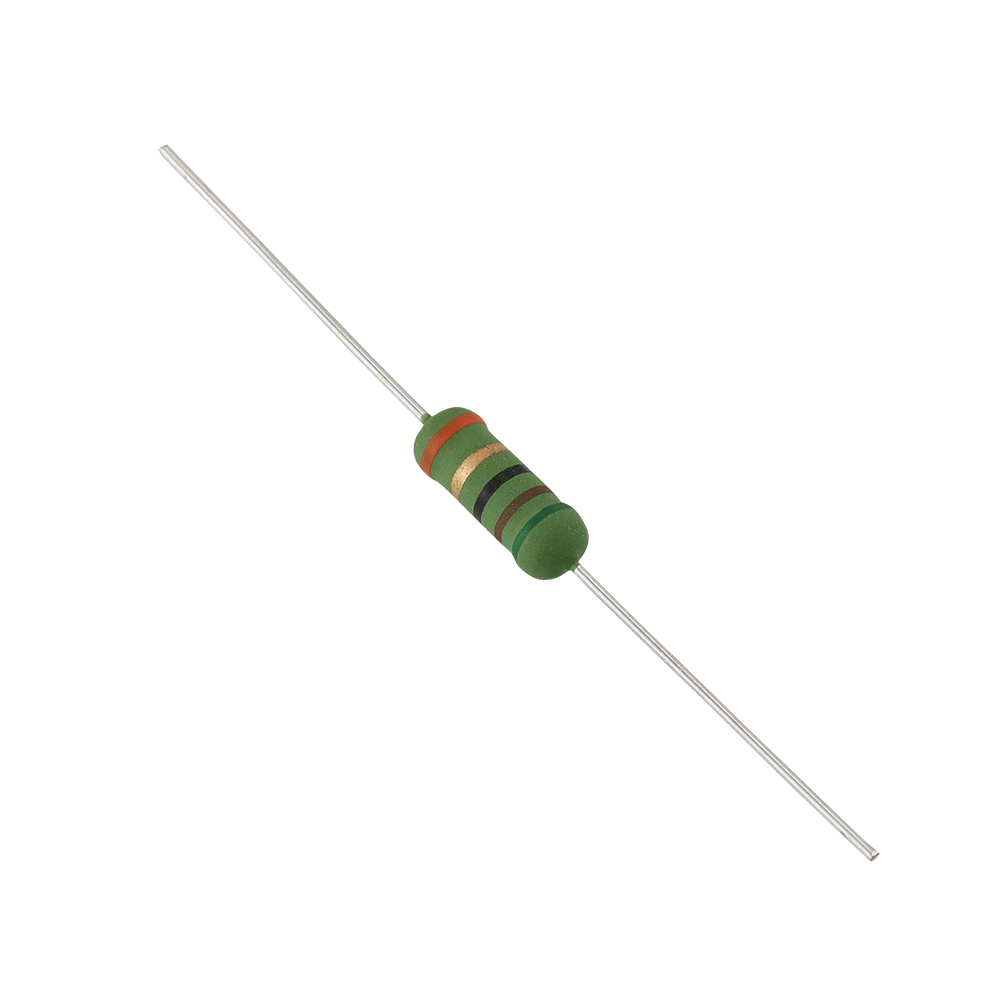

Fusible Wire Wound Resistors,Flameproof RFKN Fusible Wire Wound Resistors,Flameproof Application Guide

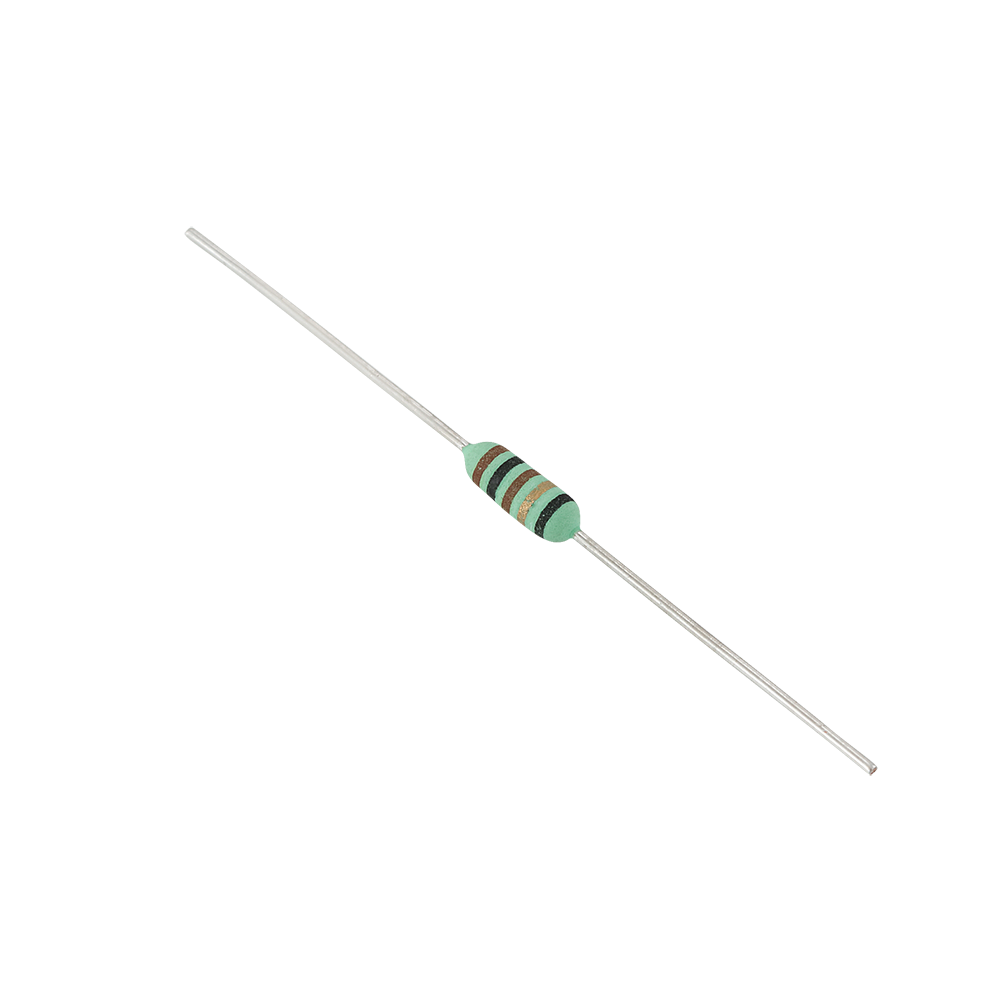

Fusible Wire Wound Resistors,Over Current Protection RFKN-H Fusible Wire Wound Resistors,Over Current Protection Application Guide

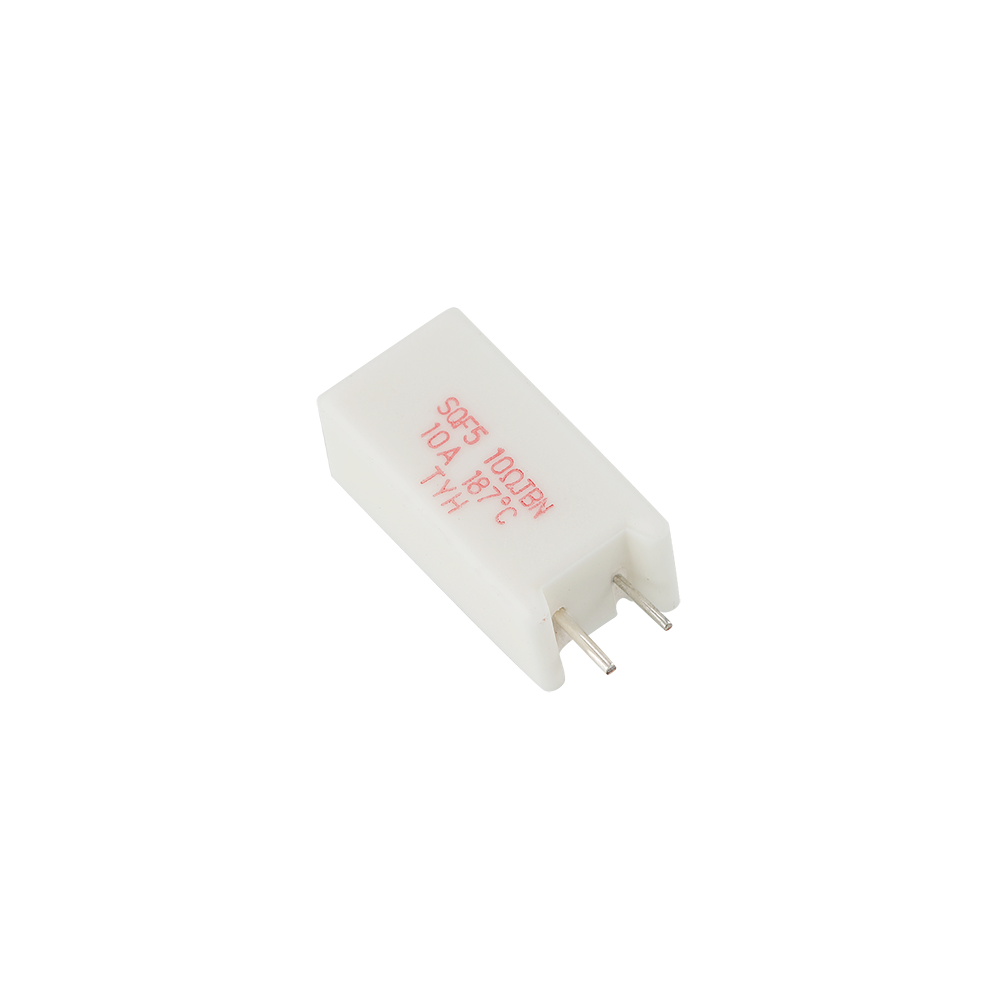

Thermal Fuse Cument  Resistors SQF Thermal Fuse Cument Resistors Application Guide

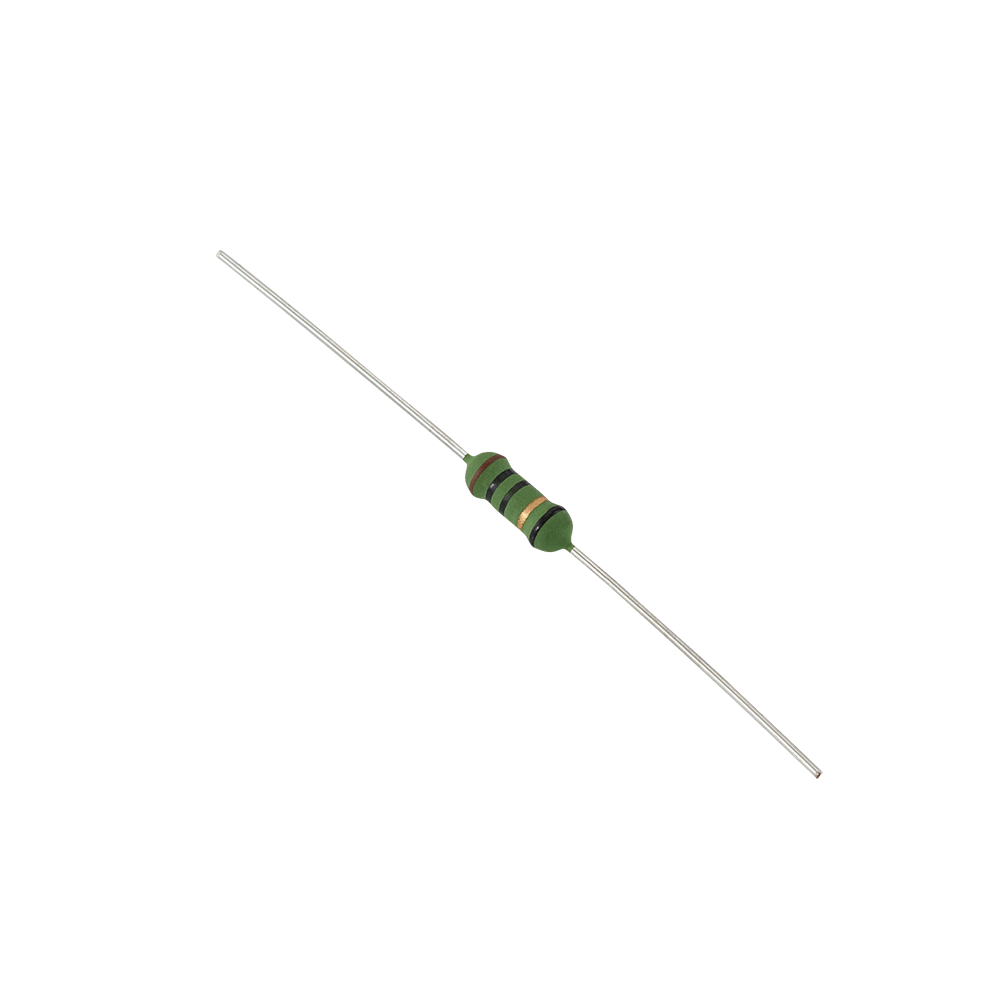

Fusible Resistors,Flameproof FRLF Fusible Resistors,Flameproof Application Guide

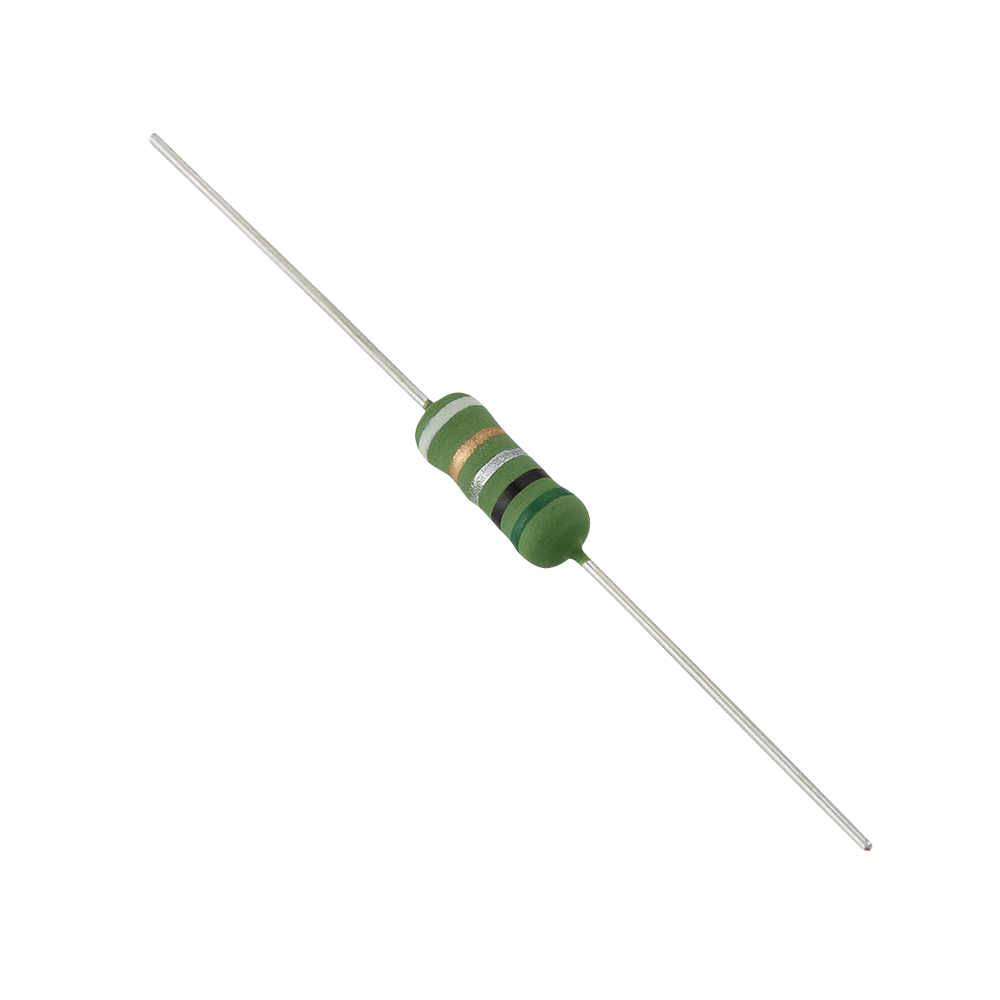

Fusible Resistors,Flameproof (Small Tyep) FRNF Fusible Resistors,Flameproof (Small Tyep) Application Guide
CSR precision current sensing resistors CSR CSR Precision Current Sensing Resistors Application Guide

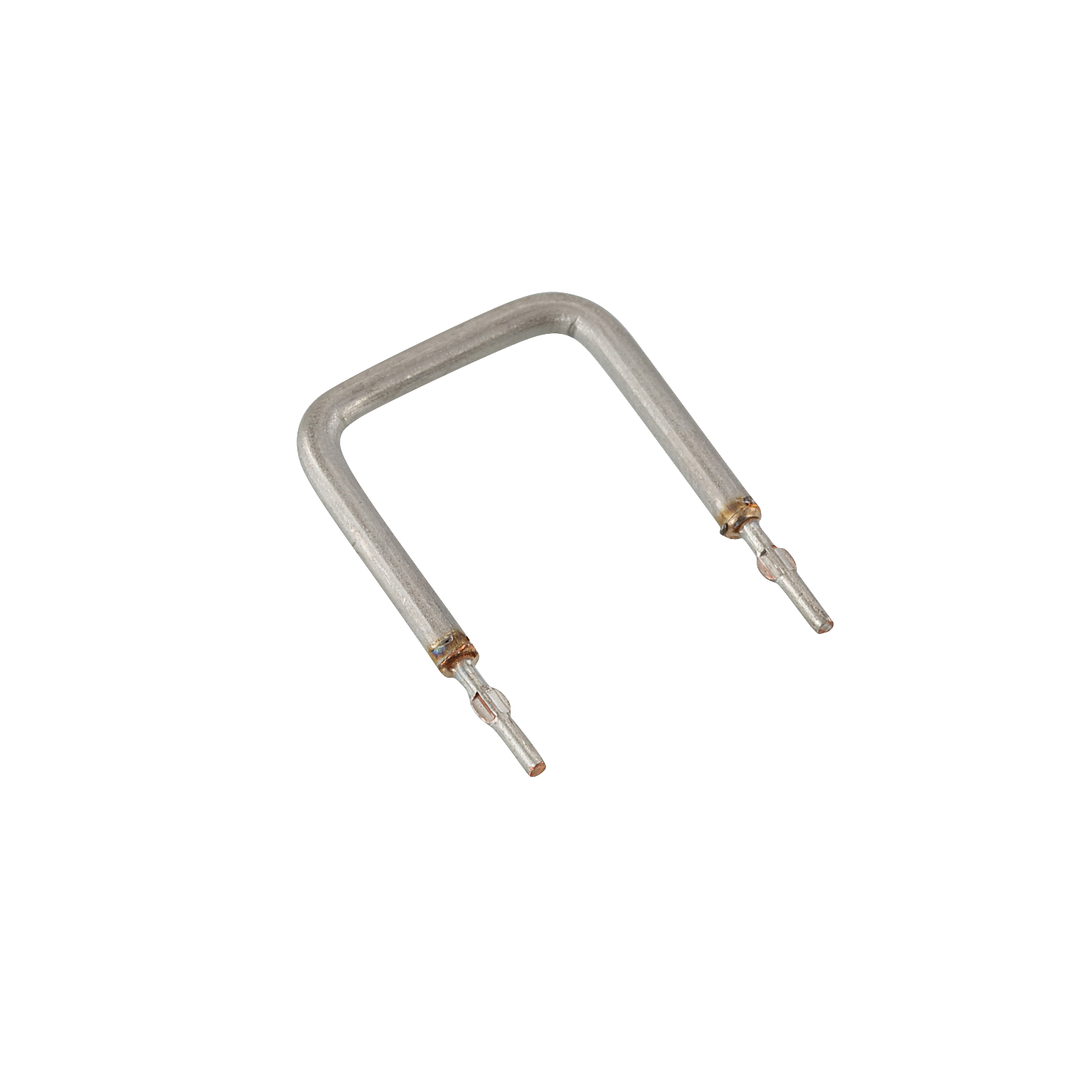

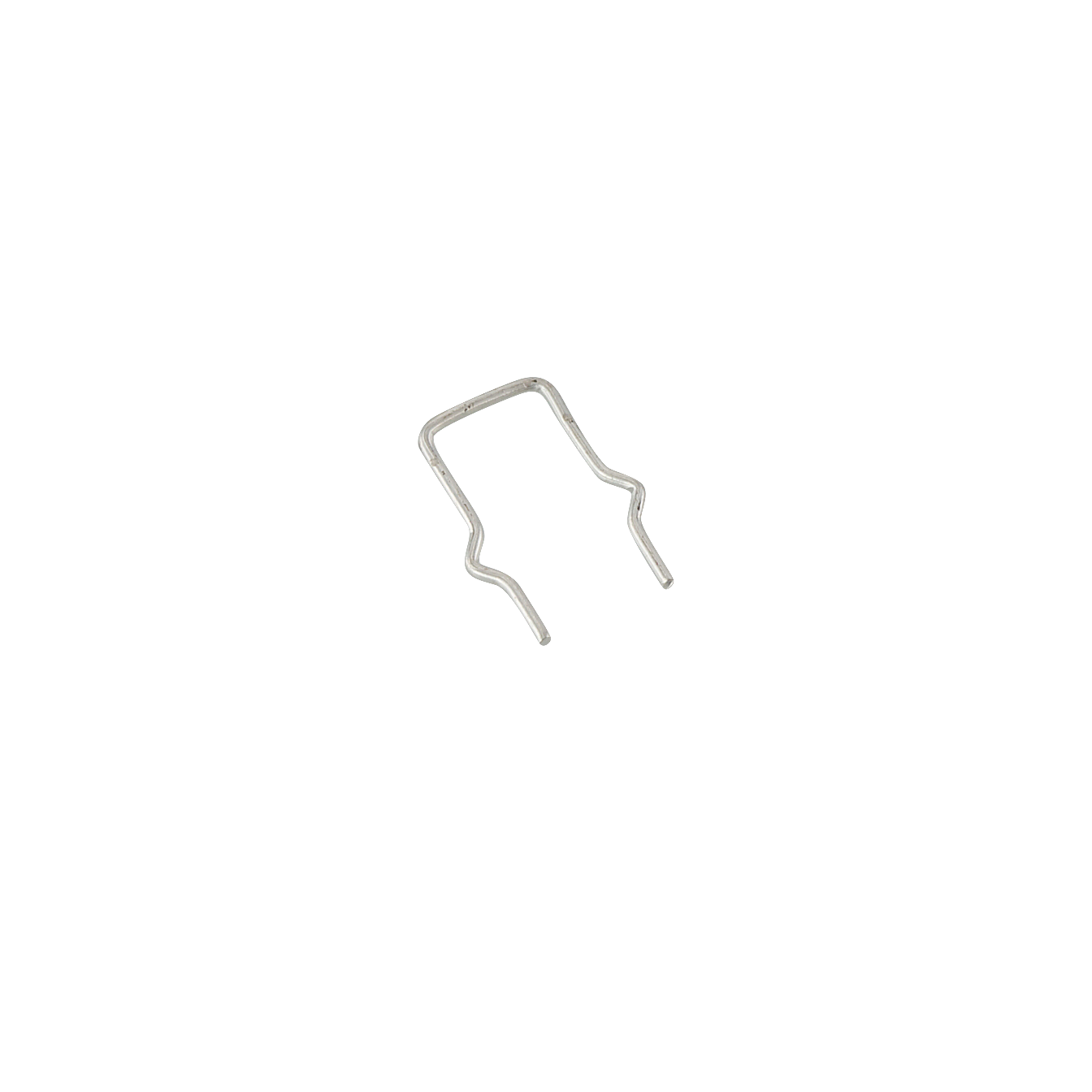

WOR milli Ohm wire resistors(Shunt) WOR WOR Milli Ohm Wire Resistors(Shunt) Application Guide

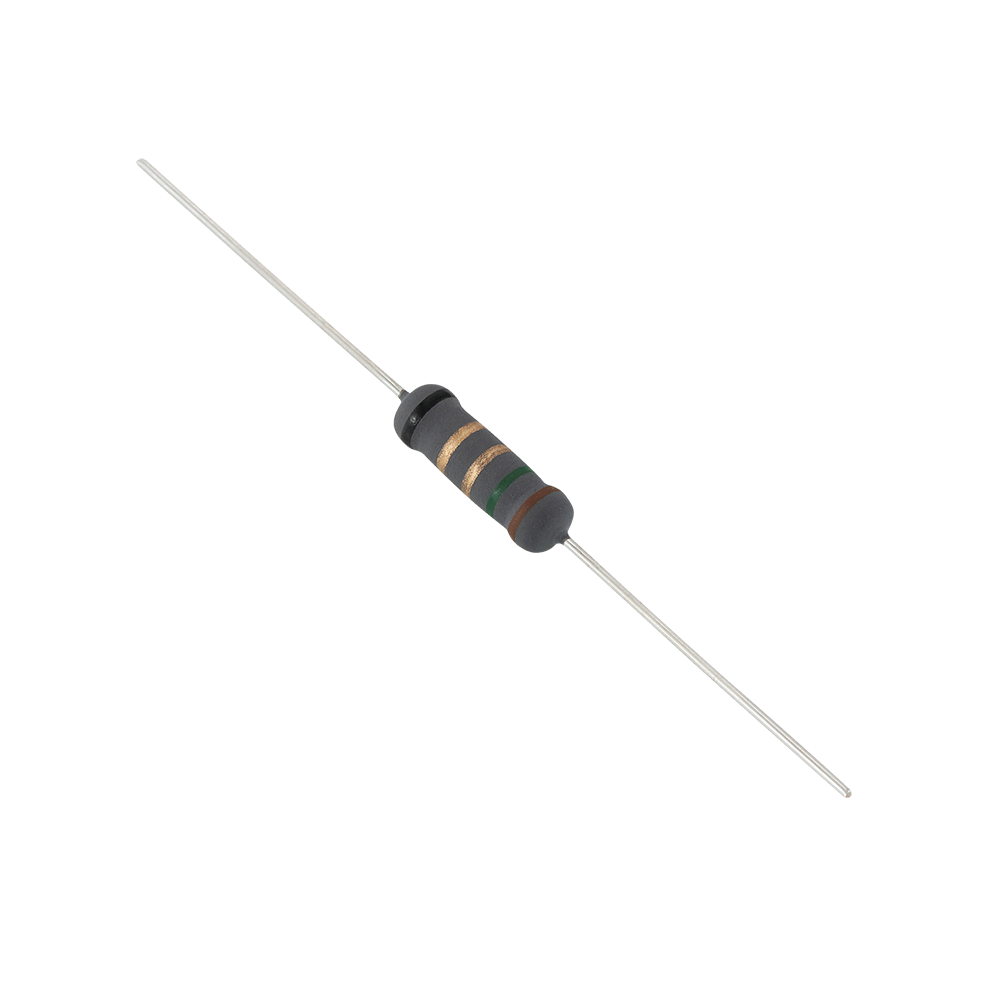

NKNP non-inductive wound resistors, flameproof NKNP NKNP Non-Inductive Wound Resistors,Flameproof NKNP Application Guide
Wire Wound Resistors,Flameproof KNP Wire Wound Resistors,Flameproof Application Guide
Wire Wound, Resistors,Flameproof  Anti-Burst KNP-A Wire Wound, Resistors,Flameproof Anti-Burst Application Guide
Wire Wound, Resistors,Flameproof  Anti-Surge KNP-C Wire Wound, Resistors,Flameproof Anti-Surge Application Guide

Wire Precision Resistor is wirewound resistors that are designed to have a very precise and stable resistance value. These types of resistors are used in applications where a high degree of accuracy is required, such as in measurement and testing equipment, precision instrumentation, and control systems.


To achieve a high level of precision, precision wirewound resistors are typically made with high-quality resistive wire and carefully wound to precise tolerances. They may also be made with more advanced winding techniques, such as helical winding or multi-layer winding, to improve stability and reduce temperature coefficient.


In addition to their precise resistance value, wire precision resistor may also have other features that improve their performance, such as a low temperature coefficient, a high power rating, and a low inductance. These characteristics make them well-suited for use in a wide range of applications.

Wire Precision Resistor Construction:

Wirewound resistor construction varies widely. The fabrication method and material selection depend on how the resistor will be used in the circuit. All of these are made by wrapping wire around an iron core. The resistance value depends on the resistivity, cross-section and length of the wire. Since these parameters can be precisely controlled, high precision resistors can be obtained. For high tolerance requirements, measure the resistance value to accurately determine the length of the cutting line. To produce high resistance, the wire diameter needs to be very small and very long. Therefore, wirewound resistors are mainly produced for lower resistance values. For low power ratings, use very thin wire. Handling of very thin wires is critical. Any damage could cut the wire. After winding,


There are also wirewound resistors rated up to 50 W or more. The construction of these resistors is completely different. Compared to other resistor types such as metal film, the wire diameter is relatively larger and therefore stronger. We offer over 20 different series of wirewound constructions. Selection can be made according to installation, application and resistance range. They all have good stability and resistance range, and come in a variety of wattage specifications.
