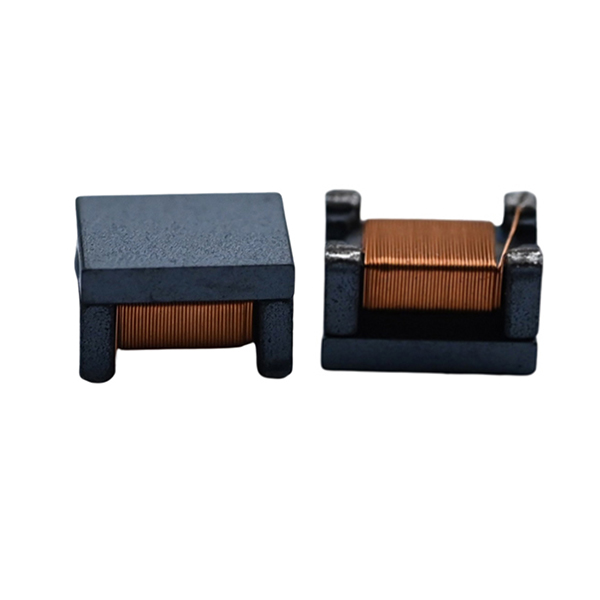

CMF Series, Common Mode Line Filters

FEATURES:

● Winding Type realizes small size and low profile.

● Prevention of common mode noise at high frequency.

● Wide impedance ranges are optional for different noise level and signal frequency.

● Excellent Solderability.

● Operating temperature:-40℃ ~ +85℃.

APPLICATIONS:

●High speed signal lines for USB, HDMI, IEEE1394, LVDS


Share:
Product Details
SeriesSizemmImpedance(Ω)DCR(mΩ)Irms (A)
CMF12101.2*1.0*0.9Max22~90200~4000.4
CMF20122.0*1.2*1.250~1000250~13000.4~0.15
CMF32163.2*1.6*2.060~2200300~12000.4~0.2
CMF32253.2*2.5*2.280~1000120~3501.0~0.35
CMF45324.5*3.2*2.860~140050~2003.0~0.7
CMF3225L3.2*2.5*2.5MaxZ:300~5000
L:11~200 uH
400~48000.3~0.07
CMF4532L4.5*3.2*2.8Z:300~5000
L:11~200 uH
600~45000.36~0.1
