image Series Features Description catalog Specification RoHS REACH Part No. Application

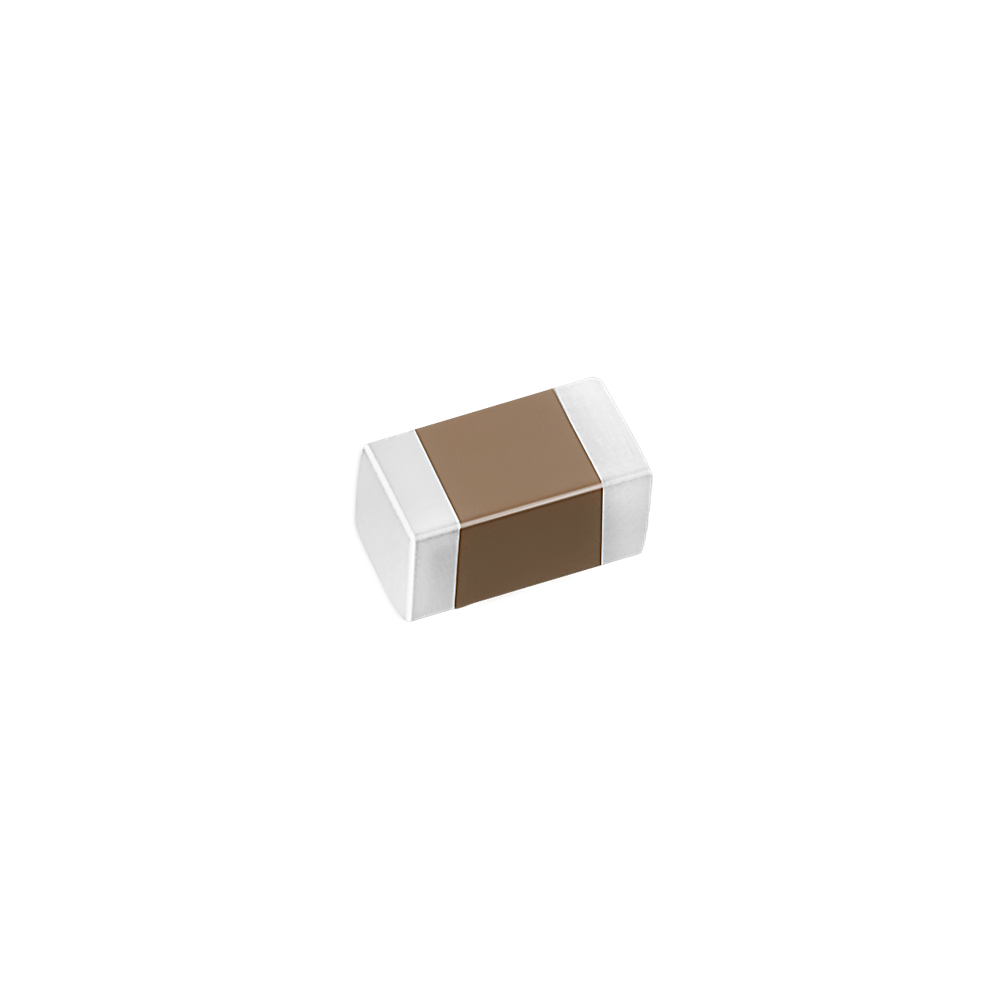

1210Y106Z500DB 1210Y106Z500DB Application Guide

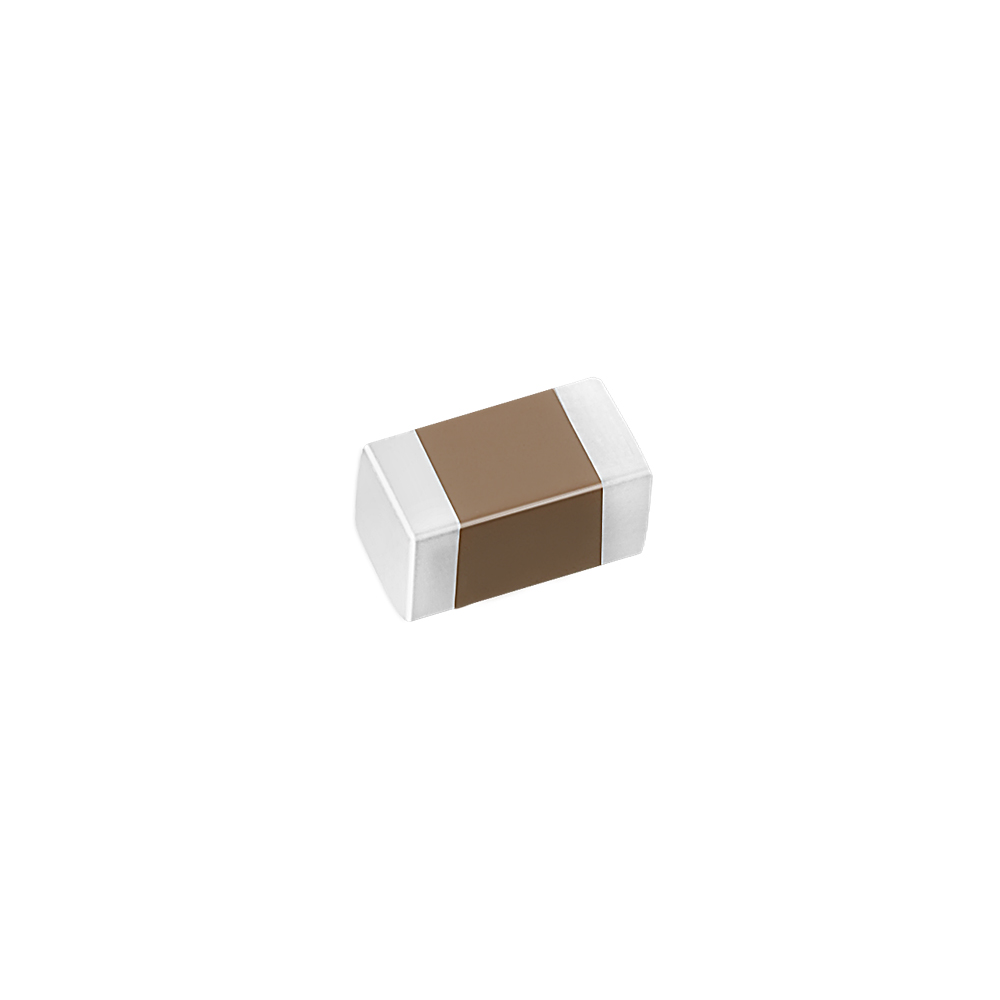

SH SH Automotive industry. Power supply and related industries. Lighting industry. The other mechanical stress concerned products Application Guide
High  Voltage High Voltage which can reduce voltage concentrations by distributing voltage gradients throughout the entire capacitor. This special design also affords increased capacitance values in a given case size and voltage rating. Capacitors with X7R dielectrics are not inte Application Guide
Automotive safe concern, high density and high efficiency, ceramic condensers are used. MT Automotive safe concern, high density and high efficiency, ceramic condensers are used. Application Guide
Automotive, power supply and related industries. .  Prevention of ceramic body cracks by board  bending Soft termination Automotive, power supply and related industries. . Prevention of ceramic body cracks by board bending Application Guide
RF series MLCC will be with the feature of low ESR and high Q characteristics. RF RF series MLCC will be with the feature of low ESR and high Q characteristics. Application Guide
Medium Voltage MLCC Medium Voltage which can reduce voltage concentrations by distributing voltage gradients throughout the entire capacitor. This special design also affords increased capacitance values in a given case size and voltage rating. Capacitors with X7R dielectrics are not inte Medium Voltage Application Guide
General MLCC General High density and high efficiency, ceramic condensers are used. wihich provides product with high electrical precision,stability and reiliability. For general digital circuit.;power supply bypass capacitors.;consumer electronics; telecommunication. General MLCC Application Guide

MLCC Resistor

Multilayer ceramic capacitors (MLCCs) are used as temporary charging and discharging "dams". It regulates the flow of current in a circuit and prevents electromagnetic interference between components. Since the thickness of the single layer dielectric and the number of layers in the stack are related to the capacitance, the technique of thinning the single layer and stacking more layers is important.

Driven by the endless desire for more compact and reliable electronic devices, MLCCs have become one of the most developed and competitive capacitor segments in the market.

As a major supplier of MLCCs, Aillen continues to allocate R&D resources to product development, manufacturing refinement and quality assurance.

Aillen is committed to providing a comprehensive portfolio of MLCC products for a variety of applications, including consumer electronics, industrial and heavy machinery, and automotive electronic systems.

Our MLCC product portfolio includes general purpose, ultra small size, high voltage, soft termination, high Q for high frequency communications, high reliability for automotive, low inductance and more.

Typical applications

High bending stress circuit boards

Soft terminations provide improved reliability performance in applications with temperature variations.

Various engine sensors: direct connection to the battery rail

Features

Multiple size options and wide capacitance range

Various sizes and capacities possible

Excellent DC bias characteristics

Capacitors with excellent DC bias characteristics

High-speed automatic chip placement on PCBs

High-speed chip mounting on PCBs
