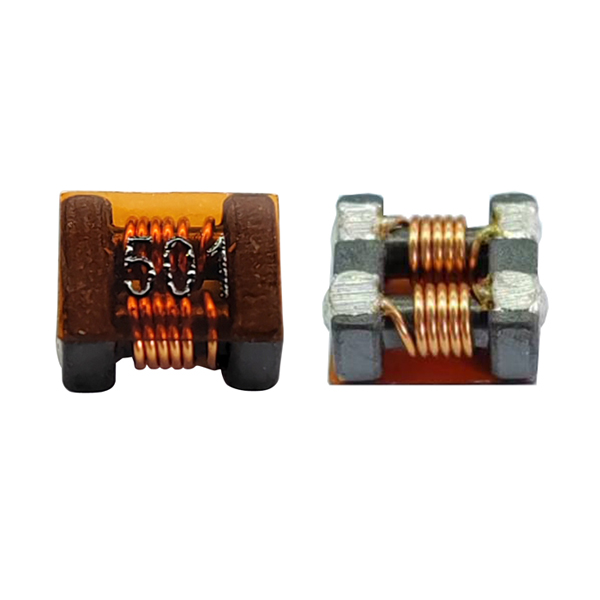

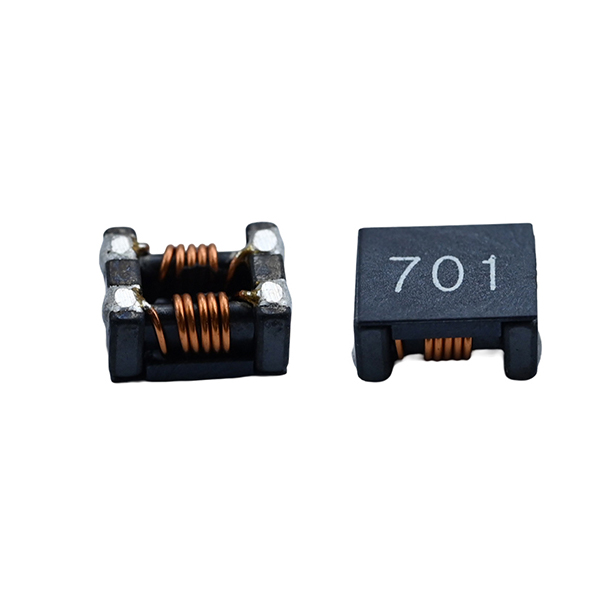

Home >> Products >> Inductor >> EMI Filters >> Common Mode Filters >> ALCM Series, Common Mode Chokes
FEATURES：
● Excellent impedance characteristics, making it great for suppressing common mode noise.
● Low profile design makes it optimal for surface mounting.
● Operating temperature:-40℃ ~ +105℃.
APPLICATIONS：
● Measures against common mode noise in power lines for various DC power lines, multimedia devices, and various electronic devices, including automotive power trains.
| Series | Size（mm） | Impedance(Ω) | DCR(mΩ) | Irms(A) |
| ALCM4520 | 4.7*4.5*2.0Max | 60~1200 | 35~81 | 3.2~1.9 |
| ALCM7060 | 7.0*6.0*3.8Max | 40~3300 | 5~100 | 15~0.8 |
| ALCM9070 | 9.0*9.5*4.8Max | 225~2500 | 6~80 | 6.0~2.0 |
| ALCM1211 | 12.0*10.8*6.4Max | 80~2300 | 2~50 | 10~1.5 |
| ALCM1513 | 15.0*13.0*6.6Max | 250~800 | 5~12 | 13~10 |
