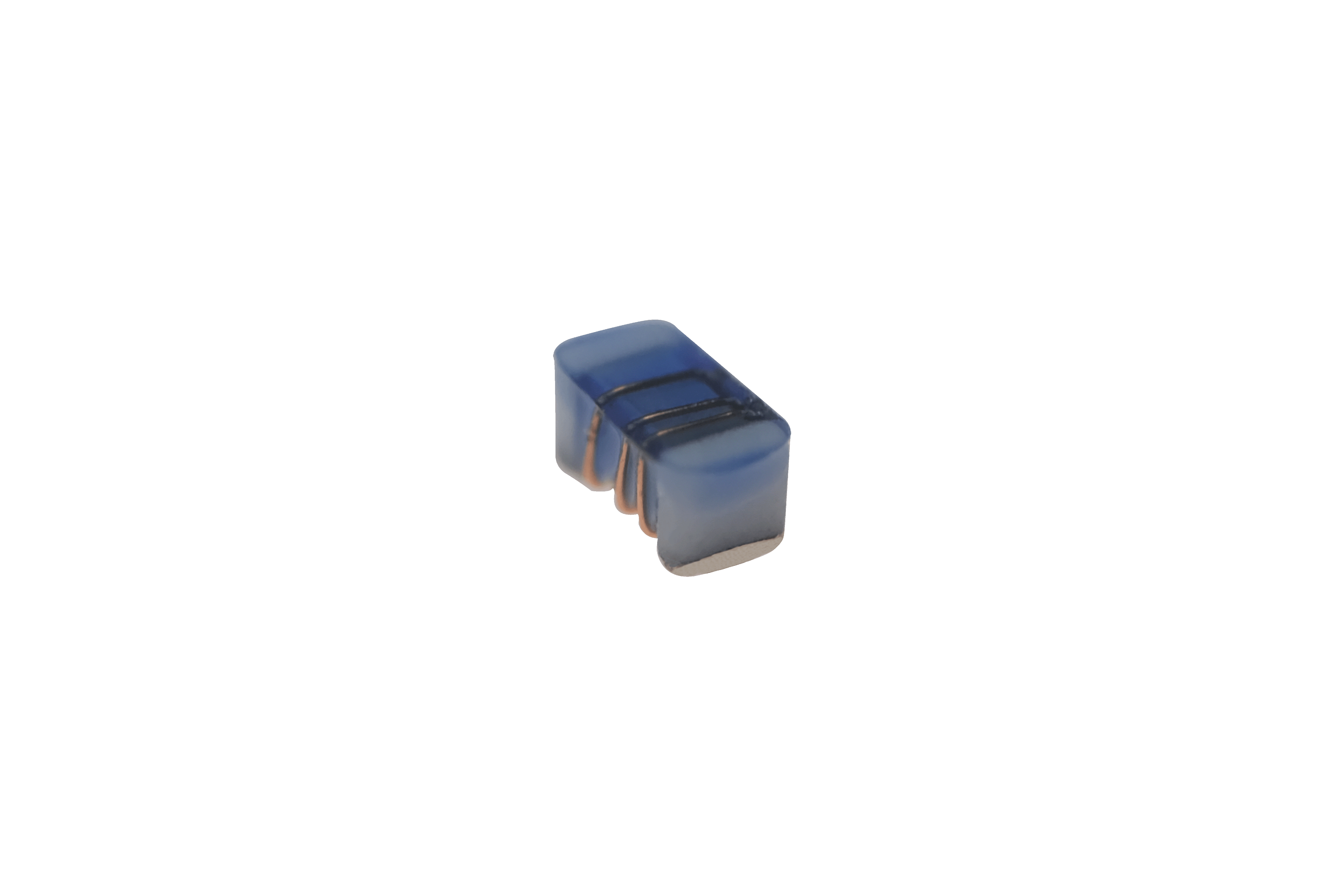

Home >> Products >> Inductor >> RF Inductors >> Wire Wound >> WCI-C Series, Wire Wound Ceramic RF Inductors
FEATURES:
● Small chip suitable for surface mounting.
● Wire Wound Ceramic Type provides high SRF and Q value.
● Tight inductance tolerance and high reliability.
● Excellent solderability and heat resistance for reflow soldering.
● Operating temperature:-40℃ ~ +85℃.
APPLICATIONS:
● High frequency circuit in telecommunication and other equipments.
● Mobile phones such as GSM, CDMA, TD-LTE, FDD-LTE, PDC, 5GNR,etc.
● Bluetooth, W-LAN, Broadband network.
| Series | Size（mm）Max | Inductance(nH) | DCR(Ω) | Irms (mA) |
| WCI1005C | 1.19*0.70*0.64 | 1.0~150 | 0.045~4.0 | 1360~20 |
| WCI1608C | 1.80*1.12*0.95 | 1.5~560 | 0.03~5.0 | 700~90 |
| WCI2012C | 2.29*1.73*1.52 | 2.2~4700 | 0.06~7.0 | 800~30 |
| WCI2520C | 2.92*2.70*2.23 | 22~10000 | 0.12~12.7 | 1000~100 |
| WCI3225C | 3.50*2.90*2.25 | 10~10000 | 0.08~10.0 | 1000~150 |
