Carbon Film MELF Resistor RCM Melf Carbon Film Resistors Application Guide

Carbon Film MELF Resistor(RCM), SMD enabled structure with cylindrical design and excellent solderability termination. Carbon Film MELF Resistor with single pulse:

10 pulses of 10/700μs at 10x rated voltage (not over max. overload voltage) with interval of 60 sec. Operating Temperature Range:-55 ~ +155 °C; Resistance:1Ω~1MΩ Tolerance: ±5% Size:RCM204~RCM52.

Features:

 • SMD enabled structure

 • Excellent solderability termination

 • Wide resistance range

 • Products meet RoHS requirements and do not contain substances of very high concern identified by European Chemicals Agency

Application

Telecommunication

Audio Product

Consumer Product

Suggested Pad Layout

Suggested Pad Layout

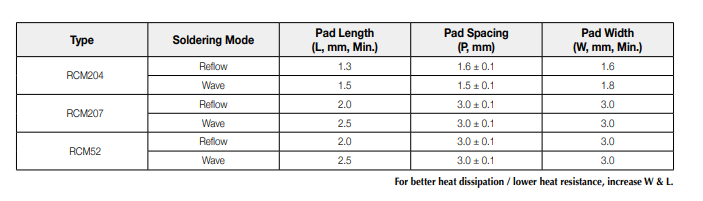

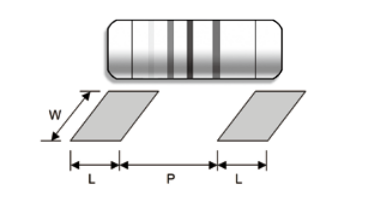

Suggested pad layout for Carbon Film MELF Resistor, RCM series
