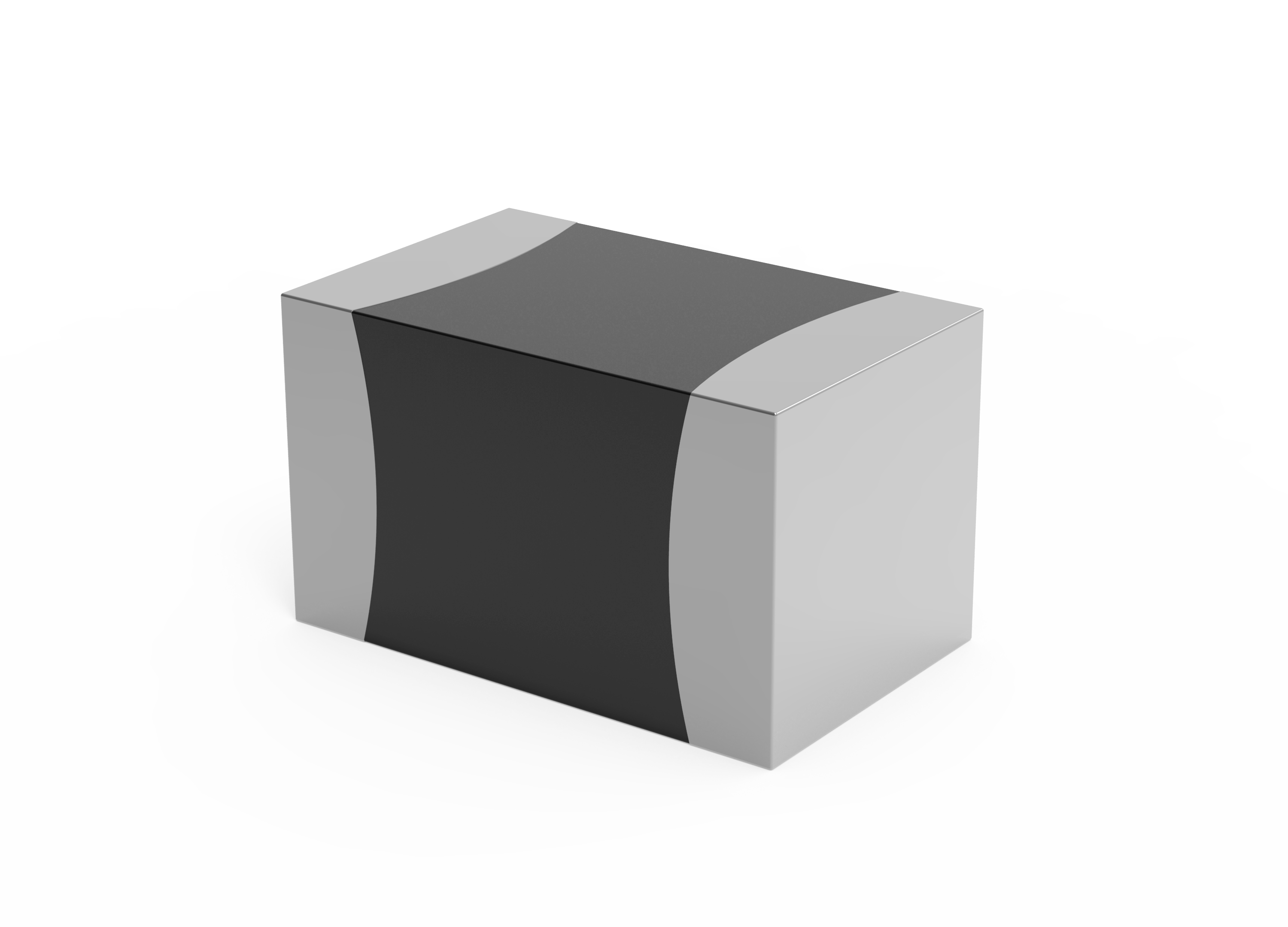

Home >> Products >> Inductor >> Power Inductors >> Multilayer >> MCPI Series, Multilayer Ferrite Power Inductors
FEATURES:
● Low profile and thin thickness.
● Monolithic structure for high reliability.
● Closed magnetic circuit design reduces leakage flux and EMI.
● Operating temperature:-40℃ ~ +85℃.
APPLICATIONS
● DC-DC converter circuits for mobile phones, wearable devices, DVCs, HDDs, etc.
Series | Size(mm) | Inductance(uH) | DCR(Ω) | IDC (A) |
MCPI1608 | 1.6*0.8*0.8 | 0.47~4.7 | 0.1~0.5 | 1.05~0.7 |
MCPI2012 | 2.0*1.2*0.9 | 1.0~6.8 | 0.11~0.3 | 1.15~0.6 |
MCPI2016 | 3.2*1.6*0.9 | 1.0~4.7 | 0.1~0.26 | 1.4~1.1 |
MCPI2520 | 2.5*2.0*1.0 | 1.0~4.7 | 0.06~0.18 | 1.6~1.1 |
