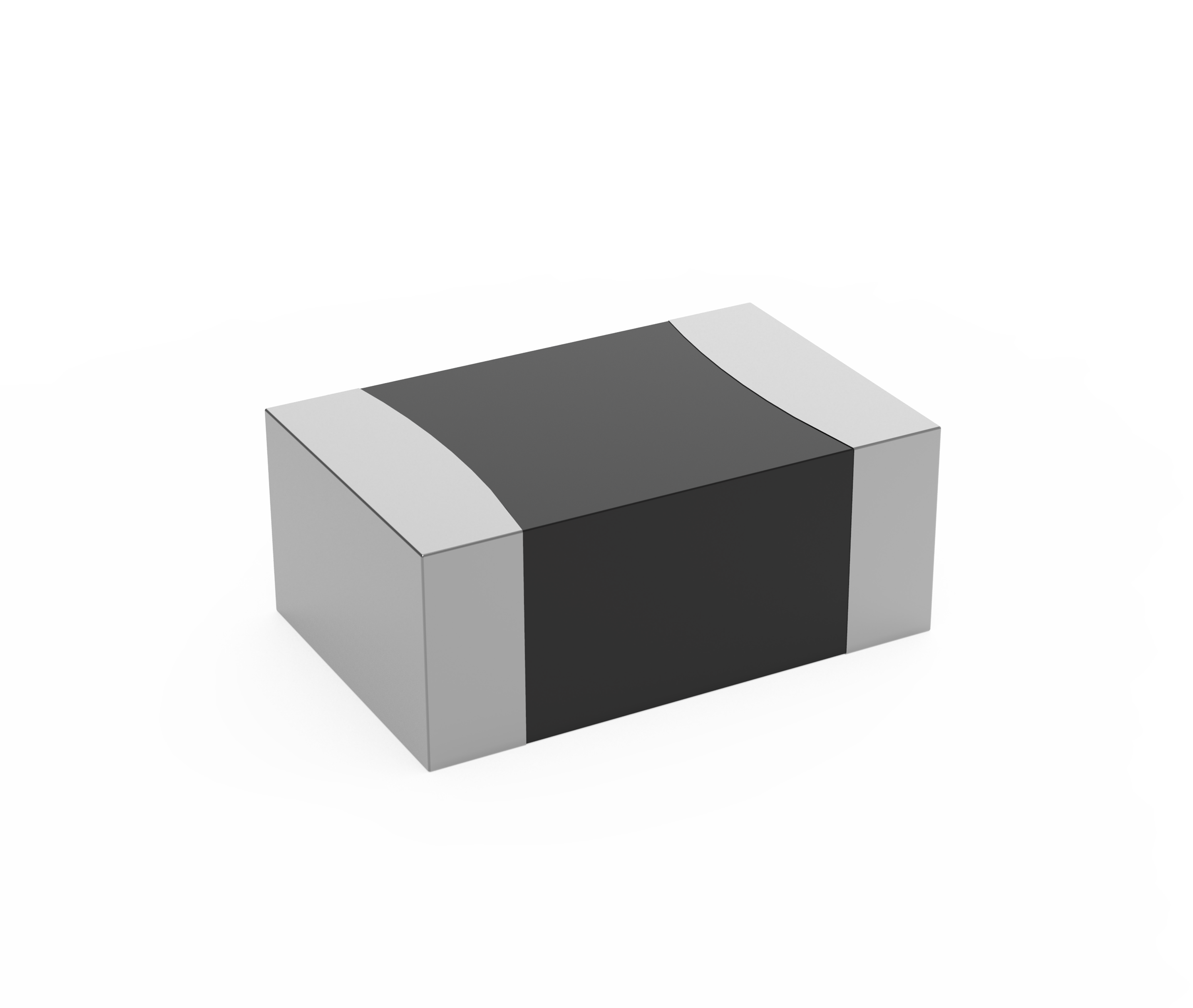

Home >> Products >> Inductor >> RF Inductors >> Multilayer >> MCFI Series, Multilayer Ferrite RF Inductors
FEATURES:
● Low profile and thin thickness.
● Monolithic structure for high reliability.
● No cross coupling due to magnetic shield.
● Excellent solderability and heat reisitance for reflow soldering.
● Operating temperature:-40℃ ~ +85℃.
APPLICATIONS:
● Widely use in Communications, Video and audio equipment, Computer, Remote control, etc.
| Series | Size（mm） | Inductance(uH) | DCR(Ω) | IDC(mA) |
| MCFI100505 | 1.0*0.5*0.5 | 0.047~2.2 | 0.45~3.0 | 25~20 |
| MCFI160808 | 1.6*0.8*0.8 | 0.047~22 | 0.2~3.0 | 50~1 |
| MCFI201209 | 2.0*1.2*0.9 | 0.047~68 | 0.15~2.6 | 300~5 |
| MCFI3216 09/11 | 3.2*1.6*0.9/1.1 | 0.047~100 | 0.15~3.0 | 300~5 |
| MCFI322513 | 3.2*2.5*1.3 | 1.0~120 | 0.2~1.8 | 600~150 |
| MCFI453215 | 4.5*3.2*1.5 | 1.0~120 | 0.55~2.5 | 650~150 |
