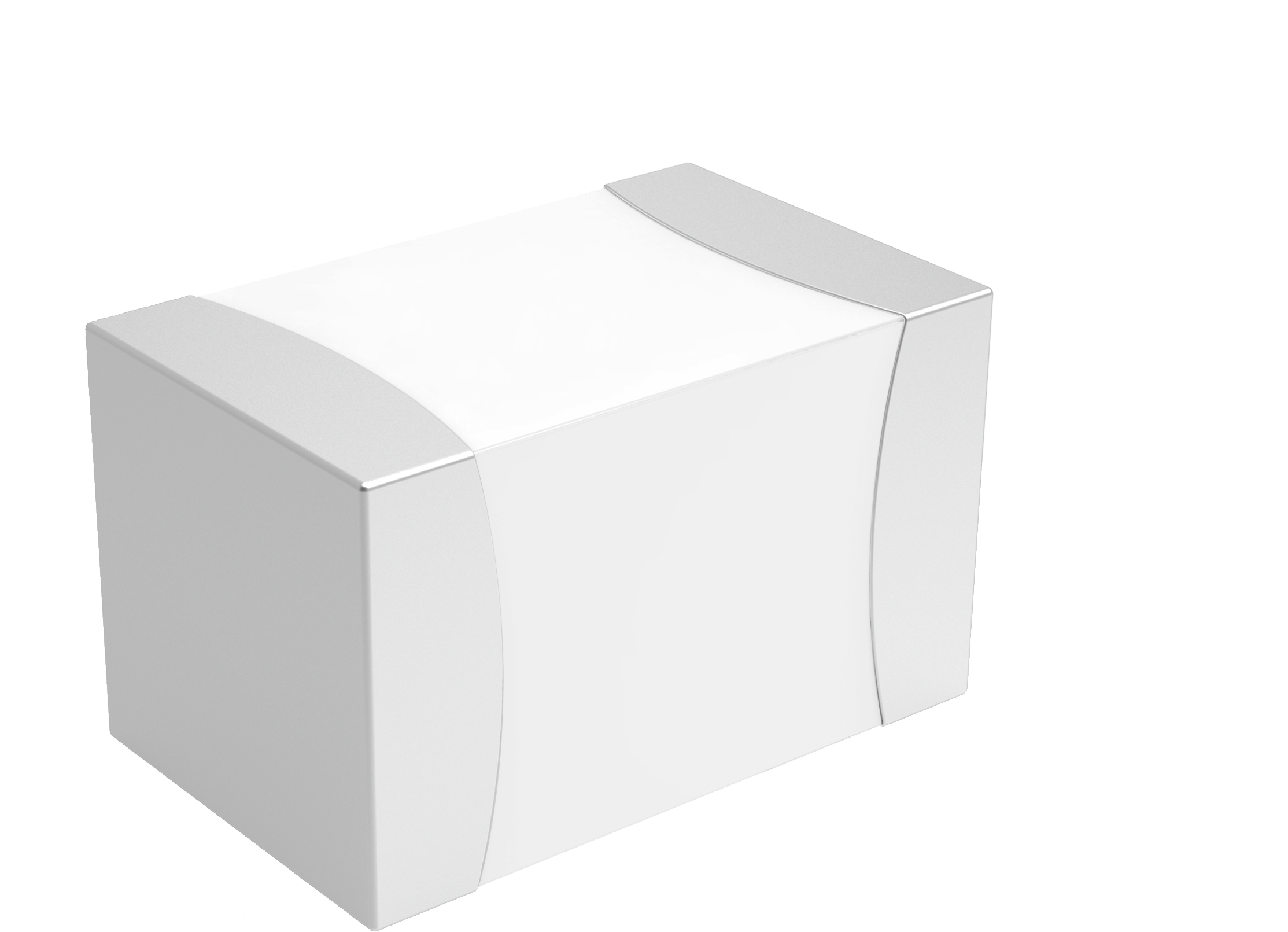

Home >> Products >> Inductor >> RF Inductors >> Multilayer >> MCFI Series, Multilayer Ceramic RF Inductors
FEATURES:
● Low profile and thin thickness.
● Monolithic structure for high reliability.
● Ceramic core provides high SRF and tight inductance tolerance.
● Excellent solderability and heat reisitance for reflow soldering.
● Operating temperature:-55℃ ~ +125℃ For 0402、0603、1005.
● Operating temperature:-40℃ ~ +85℃ For 1608、2012.
APPLICATIONS:
● RF circuit in Telecommunication and other equipments.
● Mobile phones such as GSM, CDMA, TD-LTE, FDD-LTE, PDC, 5GNR,etc.
● Bluetooth, W-LAN.
Series | Size(mm) | Inductance(nH) | DCR(Ω) | IDC(mA) |
MCCI0402 | 0.4*0.2*0.2 | 0.2~20 | 0.3~4.5 | 350~130 |
MCCI0603 | 0.6*0.3*0.3 | 0.6~120 | 0.05~5.0 | 1000~80 |
MCCI1005 | 1.0*0.5*0.5 | 1.0~360 | 0.06~6.0 | 1000~80 |
MCCI1608 | 1.6*0.8*0.8 | 1.0~470 | 0.05~3.6 | 500~150 |
MCCI2012 | 2.0*1.2*0.9 | 1.5~470 | 0.1~2.0 | 500~300 |
