  • ALDB Series, Wire Wound Unshielded Power Inductors

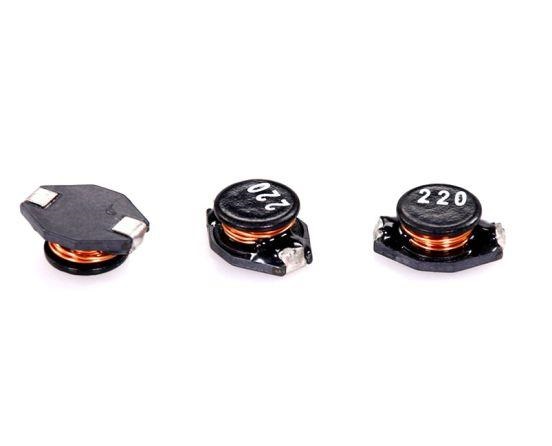

ALDB Series, Wire Wound Unshielded Power Inductors

FEATURES:

● Ferrite core provides high withstand voltage and wide inductance range.

● Non-Shielded magnetic circuit design.

● High energy storage and low resistance.

● Operating temperature:-40℃ ~ +125℃ .

APPLICATIONS:

● Ideally used in VTR, OA equipment, Digital camera, LCD television set , notebook PC, etc as DC-DC Converter.


Share:
Product Details
SeriesSizemmInductance(uH)DCR(Ω)IDC(A)
ALDB0603Max:6.9*4.5*3.01.0~68.00.05~0.982.9~0.4
ALDB1303Max:13.5*9.5*3.110.0~10000.11~8.42.4~0.1
ALDB1305Max:13.5*9.5*5.51.0~82000.009~27.69.0~0.12
ALDB1311Max:13.5*9.5*11.432.2~80000.014~1714.0~0.15
ALDB1807Max:18.54*15.24*7.111.0~18000.009~3.420.0~0.8
