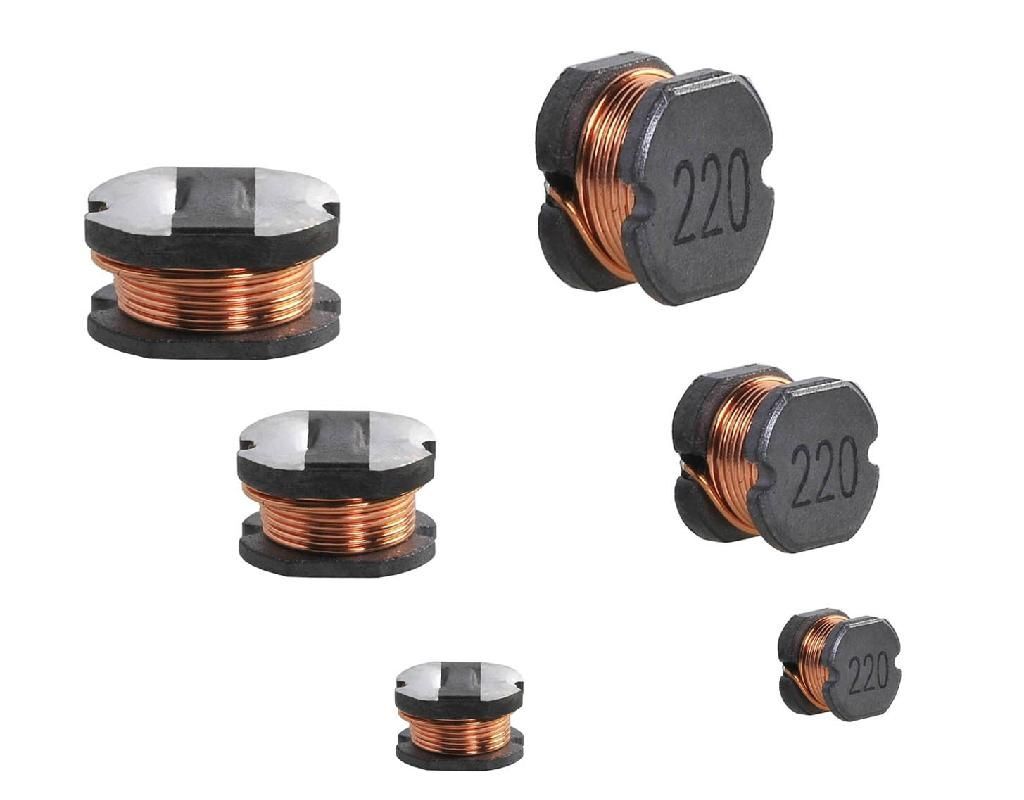

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Unshielded >> ALCD Series, Wire Wound Unshielded Power Inductors
FEATURES:
● Ferrite core provides high withstand voltage and wide inductance range.
● Non-Shielded magnetic circuit design.
● Metallization on core results in secure and reliable mounting.
● Low cost.
● Operating temperature:-40℃ ~ +125℃ .
APPLICATIONS:
● Ideally used in VTR, OA equipment, Digital camera, LCD television set , notebook PC, etc as DC-DC Converter.
| Series | Size（mm） | Inductance(uH) | DCR(Ω) | IDC(A) |
| ALCD3516 | 3.5*3.0*1.6 | 1.0~220 | 0.049~7.54 | 1.7~0.16 |
| ALCD3521 | 3.5*3.0*2.1 | 0.24~820 | 0.020~24.0 | 6.0~0.1 |
| ALCD4521 | 4.5*4.0*2.1 | 1.0~1500 | 0.030~25.56 | 2.5~0.09 |
| ALCD4532 | 4.5*4.0*3.2 | 0.1~3300 | 0.010~35.0 | 9.5~0.04 |
| ALCD5825 | 5.8*5.2*2.5 | 1.0~2500 | 0.024~36.4 | 5.5~0.11 |
| ALCD5830 | 5.8*5.2*3.0 | 1.0~4700 | 0.017~50.7 | 6.2~0.11 |
| ALCD5835 | 5.8*5.2*3.5 | 1.0~12000 | 0.017~124.0 | 3.7~0.06 |
| ALCD5845 | 5.8*5.2*4.5 | 0.3~10000 | 0.010~59.8 | 6.0~0.04 |
| ALCD7835 | 7.8*7.0*3.5 | 2.2~3500 | 0.021~18.0 | 5.2~0.14 |
| ALCD7850 | 7.8*7.0*5.0 | 1.0~33000 | 0.013~108.0 | 7.5~0.04 |
| ALCD1040 | 10*9.0*4.0 | 1.0~820 | 0.008~2.82 | 8.0~0.35 |
| ALCD1054 | 10*9.0*5.4 | 4.7~3300 | 0.027~9.1 | 6.5~0.25 |
