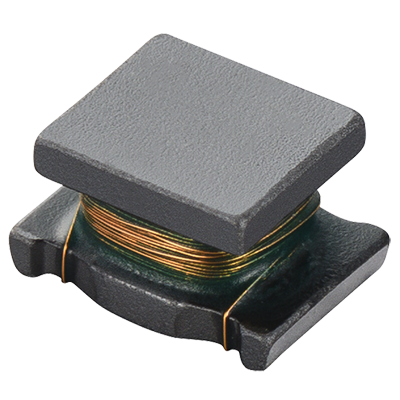

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Unshielded >> ALCH Series, Wire Wound Unshielded Power Inductors
FEATURES:
● Ferrite core provides high withstand voltage and wide inductance range.
● Non-Shielded magnetic circuit design.
● Metallization on core results in secure and reliable mounting.
● Operating temperature:-40℃ ~ +125℃ .
APPLICATIONS:
● Ideally used in VTR, OA equipment, Digital camera, LCD television set , notebook PC, etc as DC-DC Converter.
Series | Size(mm) | Inductance(uH) | DCR(Ω) | IDC(A) |
ALCH3216 | 3.2*1.6*1.8 | 0.12~100 | 0.112~15.6 | 0.97~0.08 |
ALCH3225 | 3.2*2.5*2.2 | 1.0~560 | 0.117~28.6 | 0.8~0.03 |
ALCH4532 | 4.5*3.2*2.6 | 1.0~2200 | 0.085~58.5 | 2.7~0.07 |
ALCH5750 | 5.7*5.0*4.5 | 1.0~390 | 0.020~4.0 | 9.0~0.55 |
