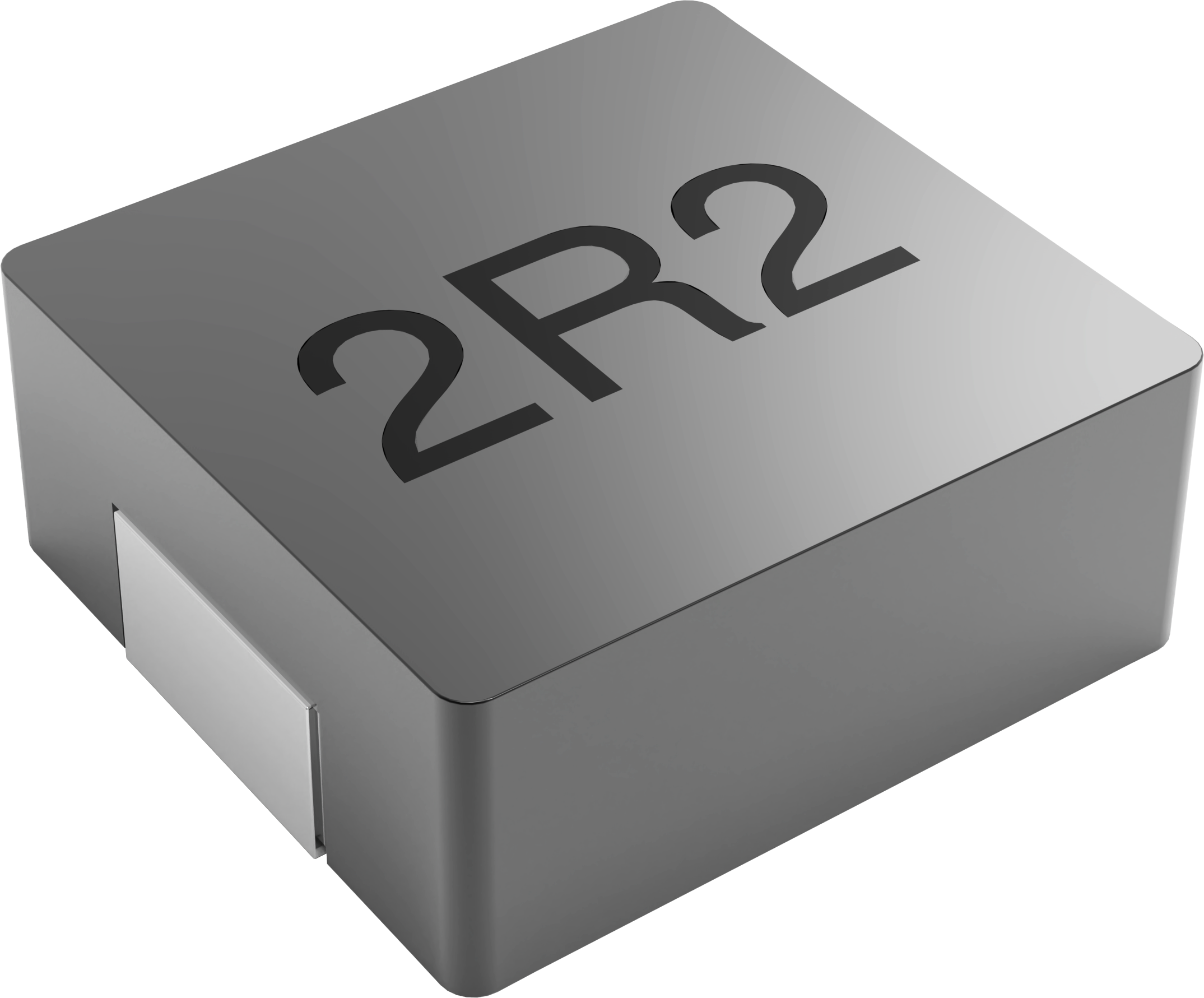

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Molding >> AMDP Series, Wire Wound Molding Power Inductors
FEATURES:
● Alloy iron powder material core provides large saturation current.
● Molding construction reduces buzz noise to ultra-low levels.
● Closed magnetic circuit design reduces leakage flux and EMI.
● Excellent temperature characteristics.
● Operating temperature:-40℃ ~ +125℃.
APPLICATIONS:
● TV, Graphics, Memory.
● Notebooks, Tablets.
● Communication equipments, Industrial equipments.
| Series | Size（mm） | Inductance(uH) | DCR(mΩ) | IDC(A) |
| AMDP0420 | 4.4*4.2*2.0Max | 0.22~10 | 6.6~282 | 9.5~1.6 |
| AMDP0520 | 5.4*5.2*2.0Max | 0.22~10 | 4.5~155 | 15~2.5 |
| AMDP0530 | 5.4*5.2*3.0Max | 0.2~10 | 5~125 | 15~3.2 |
| AMDP0624 | 7.1*6.6*2.4Max | 0.15~15 | 2.3~160 | 25~2.5 |
| AMDP0630 | 7.1*6.6*3.0Max | 0.10~33 | 1.8~270 | 37~2.0 |
| AMDP0640 | 7.1*6.6*4.0Max | 0.22~22 | 1.8~125 | 32~3.5 |
| AMDP0650 | 7.1*6.6*5.0Max | 0.22~47 | 2.8~260 | 25~2.0 |
| AMDP0830 | 8.3*8.1*3.0Max | 0.22~4.7 | 1.6~34.2 | 32~6.6 |
| AMDP0840 | 8.3*8.1*4.0Max | 0.22~4.7 | 1.68~32.0 | 30.7~7.25 |
| AMDP1030 | 11.1*10.0*3.0Max | 0.22~10 | 1.2~80.0 | 30~5 |
| AMDP1040 | 11.1*10.0*4.0Max | 0.15~68 | 0.7~205 | 45~2.3 |
| AMDP1050 | 11.1*10.0*5.0Max | 0.4~22 | 1.7~66.0 | 30~5 |
| AMDP1350 | 13.45*12.6*5.0Max | 0.1~47 | 0.6~152 | 55~2 |
| AMDP1360 | 13.45*12.6*6.0Max | 0.1~68 | 0.5~134 | 60~2 |
| AMDP1770 | 17.9*17.0*7.0Max | 1.0~100 | 1.27~110 | 32~5 |
