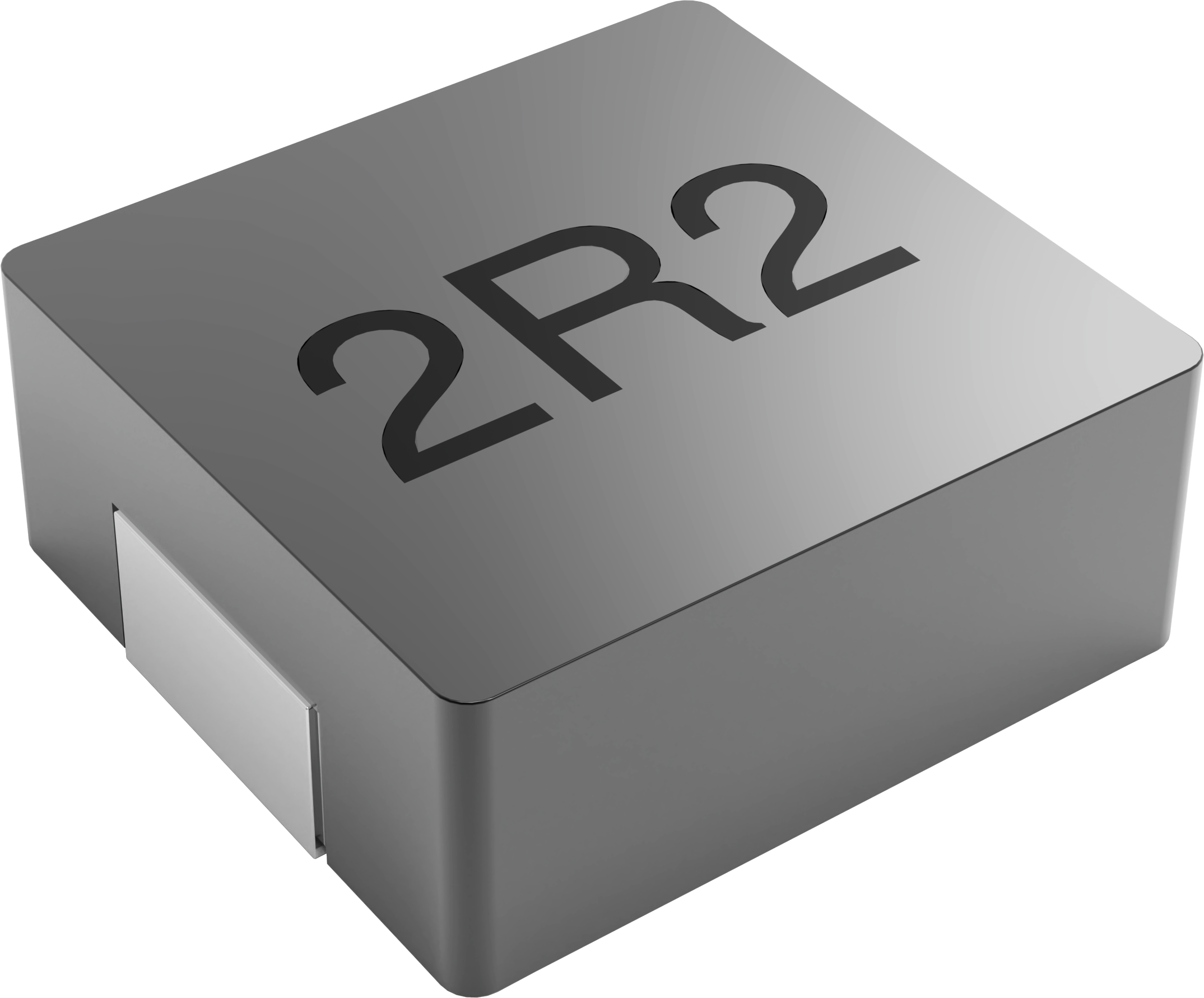

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Molding >> AMDP-H Series, Wire Wound Molding Power Inductors
FEATURES:
● Carbonyl iron powder material core provides large saturation current.
● Molding construction reduces buzz noise to ultra-low levels.
● Closed magnetic circuit design reduces leakage flux and EMI.
● Excellent temperature characteristics.
● Operating temperature:-40℃ ~ +125℃.
APPLICATIONS:
● TV, Graphics, Memory.
● Notebooks, Tablets.
● Communication equipments, Industrial equipments.
| Series | Size（mm） | Inductance(uH) | DCR(mΩ) | IDC(A) |
| AMDP0420H | 4.5*4.3*2.0Max | 0.1~10 | 4.0~243 | 14~1.8 |
| AMDP0518H | 5.5*5.3*1.8Max | 0.15~10 | 3.9~190 | 15.5~2.3 |
| AMDP0520H | 5.5*5.3*2.0Max | 0.1~10 | 4.0~199 | 18~2.3 |
| AMDP0530H | 5.5*5.3*3.0Max | 0.1~10 | 2.6~120 | 24~3.5 |
| AMDP0618H | 7.3*6.8*1.8Max | 0.1~10 | 2.5~160 | 18~2.3 |
| AMDP0620H | 7.3*6.8*2.0Max | 0.1~10 | 2.4~154 | 21~2.8 |
| AMDP0624H | 7.3*6.8*2.4Max | 0.1~22 | 1.7~215 | 30~1.8 |
| AMDP0630H | 7.3*6.8*3.0Max | 0.1~22 | 1.7~190 | 32.5~2.0 |
| AMDP0640H | 7.3*6.8*4.0Max | 0.12~33 | 1.0~210 | 32~1.8 |
| AMDP0650H | 7.3*6.8*5.0Max | 0.33~33 | 3.0~200 | 25~2.0 |
| AMDP1030H | 11.1*10.0*3.0Max | 0.22~10 | 1.3~55 | 30~5 |
| AMDP1040H | 11.1*10.0*4.0Max | 0.15~47 | 0.6~167 | 43~3 |
| AMDP1050H | 11.1*10.0*5.0Max | 0.22~47 | 0.5~145 | 45~3.8 |
| AMDP1350H | 13.6*12.6*5.0Max | 0.2~47 | 0.55~120 | 52~4 |
| AMDP1360H | 13.45*12.6*6.0Max | 0.22~68 | 0.65~140 | 55~5 |
| AMDP1365H | 13.45*12.6*6.5Max | 0.22~100 | 0.6~165 | 53~4.2 |
| AMDP1770H | 18.1*17.1*7.0Max | 0.45~100 | 0.96~118 | 62~5.3 |
