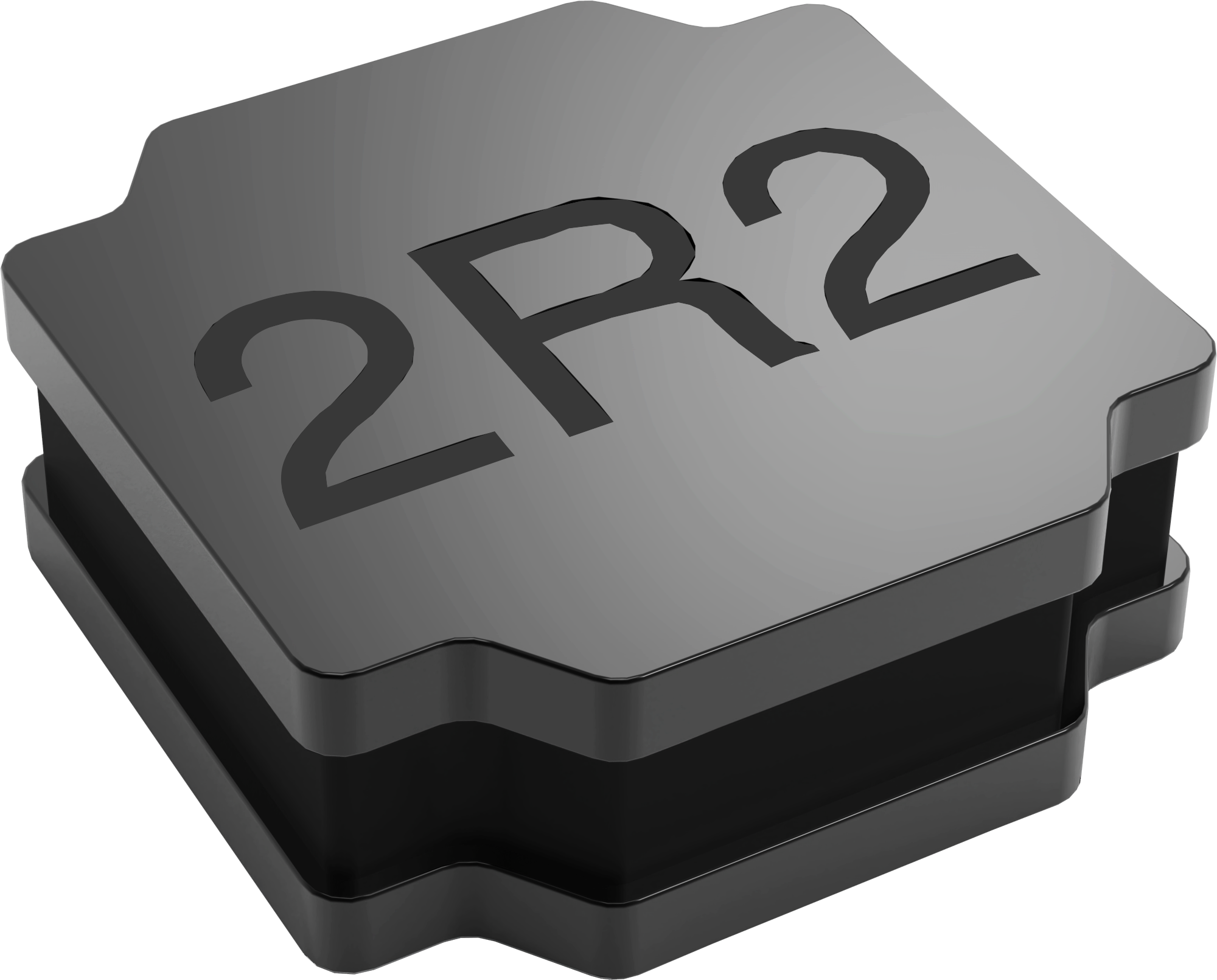

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Magnetic Resin >> AMPI Series, Wire Wound Magnetic Resin Power Inductors
FEATURES:
● Fe base metal material core provides large saturation current.
● Magnetic-resin shielded construction reduces buzz noise to ultra-low levels.
● Closed magnetic circuit design reduces leakage flux and EMI.
● Metallization on core results in secure and reliable mounting.
● Operating temperature:-40℃ ~ +125℃ .
APPLICATIONS:
● Smart phone,Set top box,VR,AR.
● Notebooks,Desktop computers,Servers.
● Portable gaming devices,Personal navigation systems,Personal multimeida devices.
Series | Size(mm) | Inductance(uH) | DCR(mΩ) | IDC(A) |
AMPI201610 | 2.0*1.7*1.05Max | 0.24~22 | 40~2000 | 3.15~0.4 |
AMPI252010 | 2.5*2.2*1.05Max | 0.24~10 | 26~520 | 4.4~0.85 |
AMPI252012 | 2.5*2.2*1.25Max | 0.24~22 | 30~1080 | 4.5~0.65 |
AMPI3012 | 3.0*3.0*1.2Max | 0.22~22 | 26~1200 | 4.2~0.4 |
AMPI3015 | 3.0*3.0*1.55Max | 0.22~20 | 19~910 | 5.0~0.56 |
AMPI4012 | 4.0*4.0*1.2Max | 0.47~10 | 41~360 | 3.8~0.85 |
AMPI4020 | 4.0*4.0*2.0Max | 0.24~47 | 17~1200 | 6.0~0.56 |
