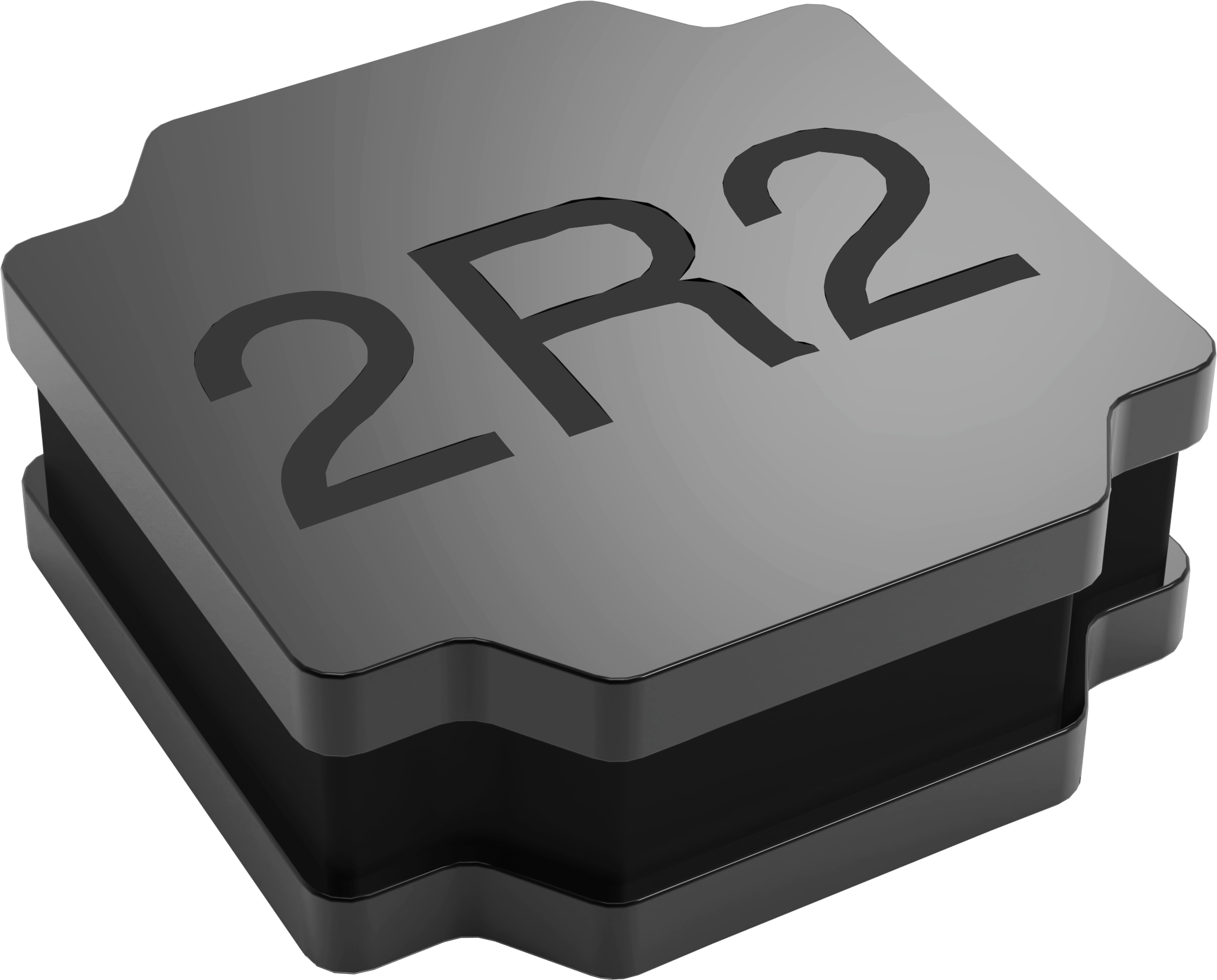

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Magnetic Resin >> ALNR Series, Wire Wound Magnetic Resin Power Inductors
FEATURES:
● Ferrite core provides high withstand voltage and wide inductance range.
● Magnetic-resin shielded construction reduces buzz noise to ultra-low levels.
● Closed magnetic circuit design reduces leakage flux and EMI.
● Metallization on core results in secure and reliable mounting.
● Operating temperature:-40℃ ~ +125℃ .
APPLICATIONS:
● Smart phone,Set top box,VR,AR.
● Notebooks,Desktop computers,Servers.
● Portable gaming devices,Personal navigation systems,Personal multimeida devices.
● LED lighting.
| Series | Size（mm） | Inductance(uH) | DCR(Ω) | IDC(A) |
| ALNR201610 | 2.1*1.7*1.05Max | 0.47~22 | 0.053~2.0 | 2.16~0.3 |
| ALNR252010 | 2.6*2.1*1.05Max | 0.24~22 | 0.034~1.344 | 2.65~0.4 |
| ALNR252012 |  2.6*2.1*1.25Max | 0.24~47 | 0.028~2.0 | 3.5~0.29 |
| ALNR3010 | 3.0*3.0*1.0Max | 1.0~47 | 0.070~1.95 | 1.2~0.2 |
| ALNR3012 | 3.0*3.0*1.2Max | 0.24~68 | 0.035~3.840 | 4.0~0.3 |
| ALNR3015 | 3.0*3.0*1.5Max | 0.47~150 | 0.027~4.94 | 2.35~0.19 |
| ALNR4010 | 4.0*4.0*1.1Max | 2.2~47 | 0.143~1.95 | 1.4~0.32 |
| ALNR4012 | 4.0*4.0*1.2Max | 0.68~47 | 0.058~2.21 | 1.72~0.37 |
| ALNR4018 | 4.0*4.0*1.8Max | 0.24~47 | 0.018~0.845 | 4.3~0.42 |
| ALNR4020 | 4.0*4.0*2.0Max | 1.0~220 | 0.038~5.34 | 2.15~0.24 |
| ALNR4030 | 4.0*4.0*3.0Max | 0.24~2200 | 0.012~31.2 | 5.1~0.05 |
| ALNR5012 | 5.0*5.0*1.2Max | 0.47~33 | 0.065~1.56 | 2.2~0.45 |
| ALNR5020 | 5.0*5.0*2.0Max | 0.22~1200 | 0.017~14.69 | 5.3~0.07 |
| ALNR5030 | 5.0*5.0*3.0Max | 0.47~1000 | 0.013~10.8 | 4.9~0.15 |
| ALNR5040 | 5.0*5.0*4.0Max | 1.0~1500 | 0.017~13.3 | 4.9~0.16 |
| ALNR6020 | 6.0*6.0*2.0Max | 1.0~1000 | 0.026~14.35 | 3.5~0.1 |
| ALNR6028 | 6.0*6.0*2.8Max | 1.0~1200 | 0.012~8.3 | 4.5~0.22 |
| ALNR6045 | 6.0*6.0*4.5Max | 0.68~180 | 0.011~1.15 | 5.7~0.54 |
| ALNR8040 | 8.0*8.0*4.2Max | 1.0~1000 | 0.011~3.8 | 6.3~0.3 |
| ALNR8060 | 8.0*8.0*6.0Max | 2.2~1000 | 0.022~3.87 | 5.7~0.37 |
| ALNR8065 | 8.0*8.0*6.5Max | 6.8~10000 | 0.029~36.4 | 4.3~0.11 |
| ALNR1050 | 10*10*5.0Max | 1.0~1000 | 0.018~3.42 | 6.4~0.5 |
