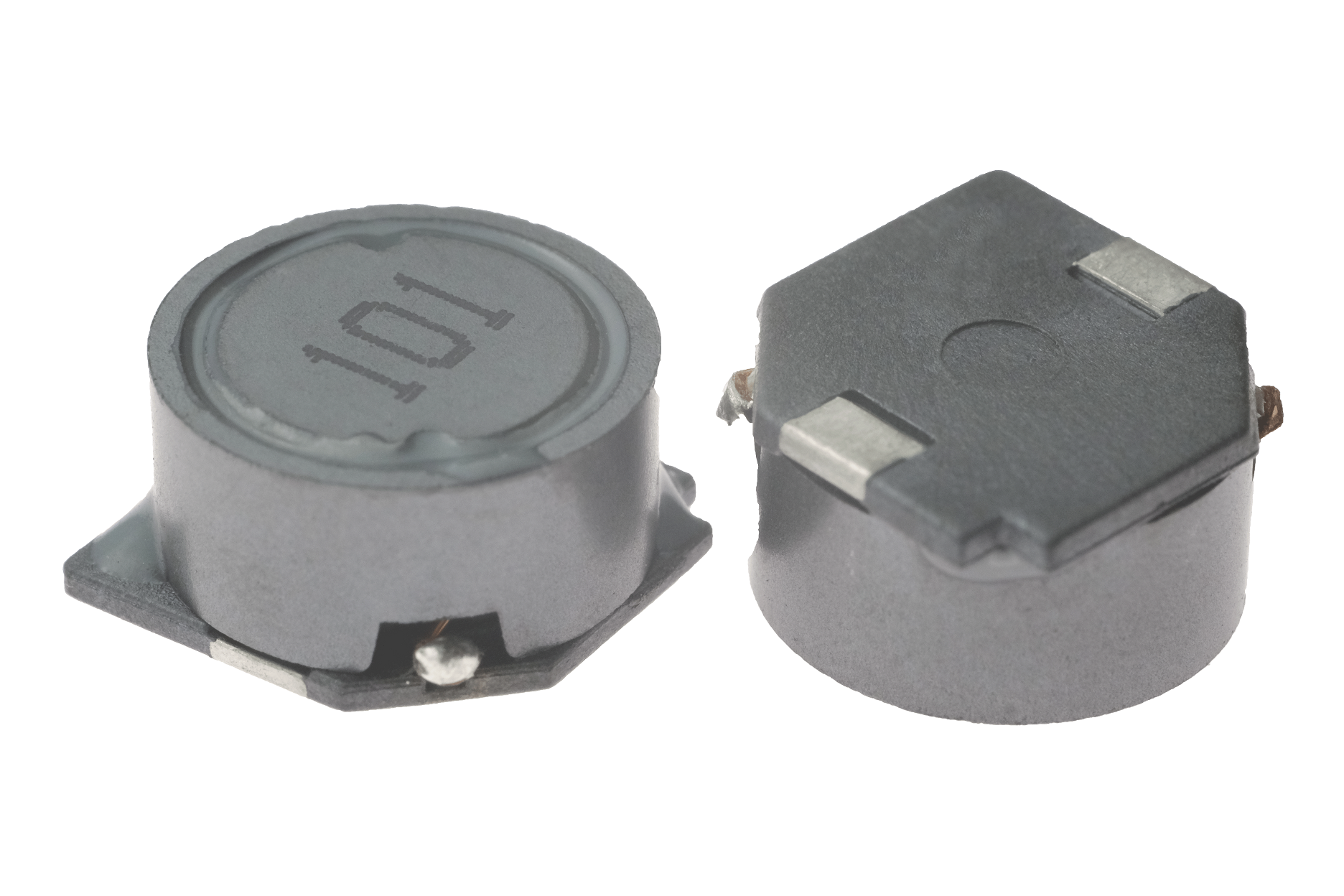

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Assembly >> CDRR Series, Wire Wound Assembly Power Inductors
FEATURES:
● Ferrite core provides high withstand voltage and wide inductance range.
● Closed magnetic circuit design reduces leakage flux and EMI.
● Assembly Type.
● Operating temperature:-40℃ ~ +105℃.
APPLICATIONS:
● Ideally used in VTR, OA equipment, Digital camera, LCD television set , notebook PC, etc as DC-DC Converter.
| Series | Size（mm） | Inductance(uH) | DCR(mΩ) | IDC(A) |
| CDRR6025 | 6.0*6.0*2.8Max | 2.2~100 | 32~650 | 1.7~0.33 |
| CDRR6028 | 6.0*6.0*3.1Max | 4.7~220 | 37.4~1293 | 1.6~0.26 |
| CDRR7032 | 7.0*6.0*3.5Max | 3.3~1000 | 28~5730 | 1.9~0.13 |
| CDRR7045 | 7.0*6.0*4.8Max | 3.3~1000 | 24~2736 | 2.5~0.14 |
| CDRR7055 | 7.0*6.0*5.8Max | 1.5~100 | 23~381 | 6.2~0.8 |
| CDRR10145 | 10.1*10.1*4.8Max | 3.3~1500 | 20~4080 | 4.9~0.22 |
| CDRR12555 | 12.5*12.5*5.8Max | 6.0~1500 | 20~2163 | 3.6~0.29 |
| CDRR12565 | 12.5*12.5*6.9Max | 2.0~1000 | 15~1375 | 10~0.3 |
| CDRR12575 | 12.5*12.5*7.9Max | 1.2~220 | 9~335 | 13~1.3 |
