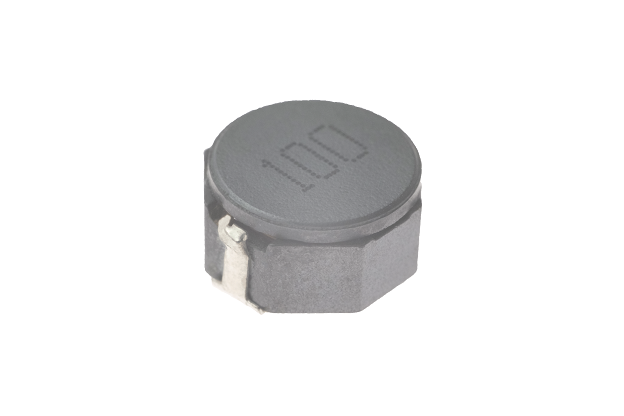

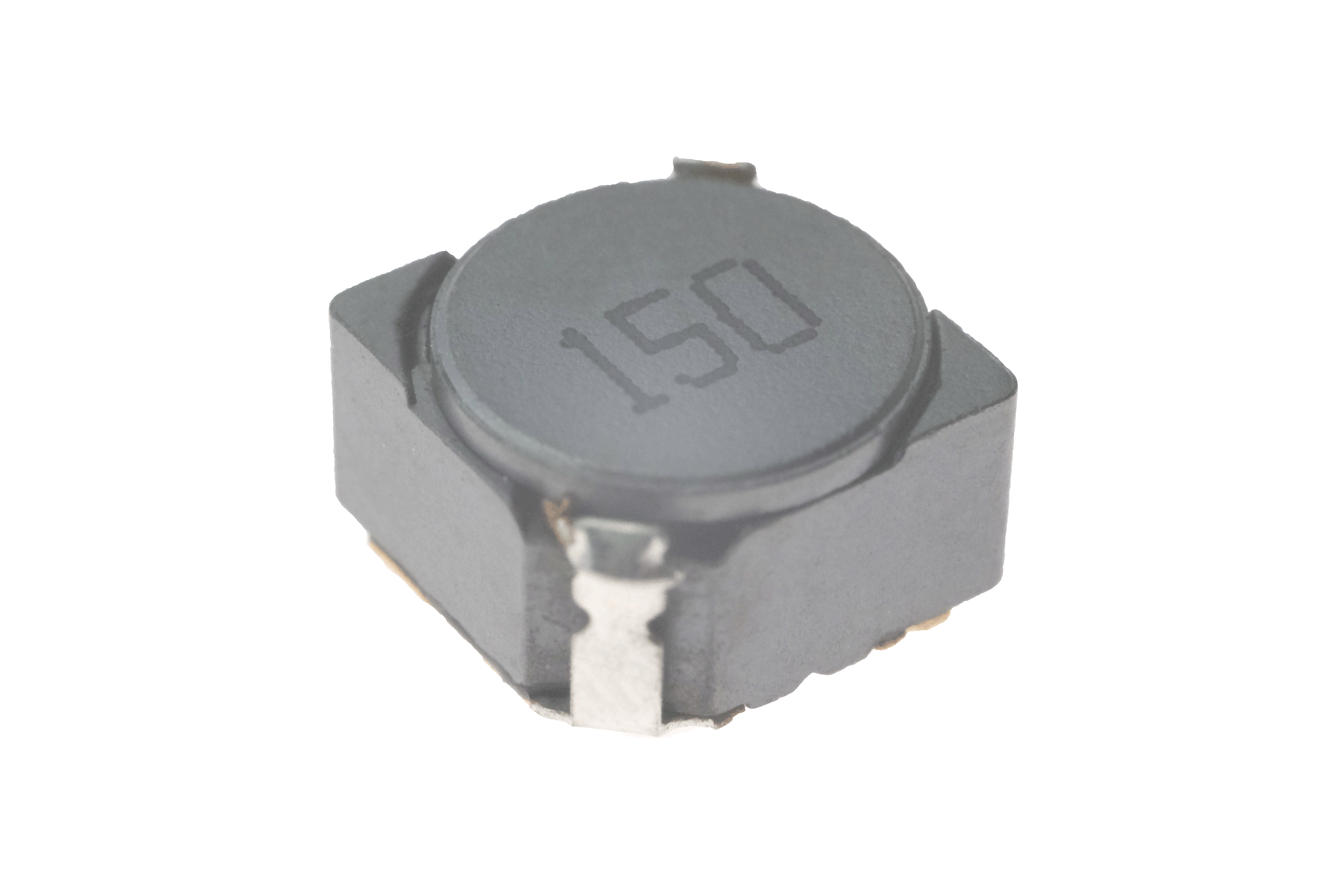

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Assembly >> CDRH-D Series, Wire Wound Assembly Power Inductors
FEATURES:
● Ferrite core provides high withstand voltage and wide inductance range.
● Closed magnetic circuit design reduces leakage flux and EMI.
● Assembly Type.
● Operating temperature:-40℃ ~ +105℃ .
APPLICATIONS:
● Ideally used in VTR, OA equipment, Digital camera, LCD television set , notebook PC, etc as DC-DC Converter.
| Series | Size（mm） | Inductance(uH) | DCR(mΩ) | IDC(A) |
| CDRH2D09 | 3.0*3.0*1.2Max | 2.2~22 | 170~1100 | 0.6~0.2 |
| CDRH2D11 | 3.0*3.0*1.3Max | 1.0~47 | 60~2200 | 1.1~0.16 |
| CDRH2D14 | 3.0*3.0*1.6Max | 1.0~100 | 48~2400 | 2.0~0.12 |
| CDRH2D18 | 3.0*3.0*2.0Max | 1.5~15 | 46~352 | 1.85~0.7 |
| CDRH3D11 | 3.8*3.8*1.3Max | 2.7~39 | 78~942 | 0.53~0.14 |
| CDRH3D14 | 3.8*3.8*1.6Max | 1.2~47 | 40~1180 | 1.5~0.25 |
| CDRH3D16 | 3.8*3.8*1.8Max | 1.2~47 | 33~75 | 1.5~0.21 |
| CDRH3D28 | 3.8*3.8*3.0Max | 2.2~68 | 90~930 | 1.75~0.42 |
| CDRH3D16B | 3.8*3.8*1.9Max | 1.2~47 | 33~775 | 1.5~0.21 |
| CDRH3D28B | 3.8*3.8*3.0Max | 2.2~68 | 90~930 | 1.75~0.42 |
| CDRH4D18 | 4.7*4.7*2.0Max | 1.0~220 | 45~2400 | 1.72~0.15 |
| CDRH4D28 | 4.7*4.7*3.0Max | 1.0~180 | 236~1540 | 2.56~0.22 |
| CDRH5D18 | 5.7*5.7*2.0Max | 4.1~100 | 57~1200 | 1.95~0.36 |
| CDRH5D28 | 5.7*5.7*3.0Max | 1.0~180 | 12~1550 | 3.7~0.32 |
| CDRH6D28 | 6.7*6.7*3.0Max | 1.2~100 | 14~035 | 4.5~0.54 |
| CDRH6D38 | 6.7*6.7*4.0Max | 1.0~330 | 10~1550 | 4.5~0.35 |
| CDRH8D28 | 8.0*8.0*3.0Max | 1.0~100 | 121~4400 | 6.5~0.75 |
| CDRH8D38 | 8.0*8.0*4.0Max | 1.8~100 | 176~420 | 7.0~1.05 |
| CDRH8D43 | 8.0*8.0*4.5Max | 1.0~120 | 135~560 | 6.2~0.7 |
