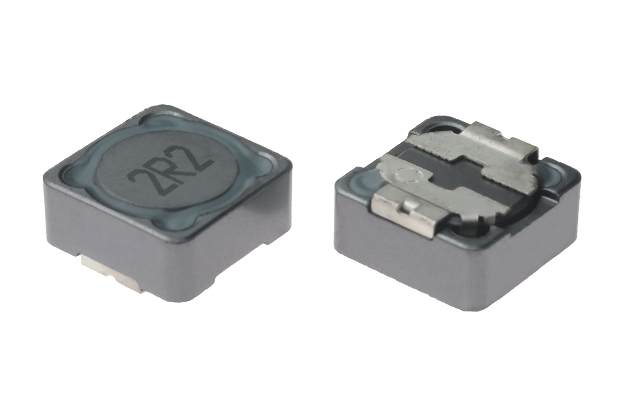

Home >> Products >> Inductor >> Power Inductors >> Wire Wound Assembly >> CDRH Series, Wire Wound Assembly Power Inductors
FEATURES:
● Ferrite core provides high withstand voltage and wide inductance range.
● Closed magnetic circuit design reduces leakage flux and EMI.
● Assembly Type.
● Operating temperature:-40℃ ~ +105℃.
APPLICATIONS:
● Ideally used in VTR, OA equipment, Digital camera, LCD television set , notebook PC, etc as DC-DC Converter.
| Series | Size（mm） | Inductance(uH) | DCR(mΩ) | IDC(A) |
| CDRH64 | 5.9*6.2*5.0Max | 2.2~220 | 26.4~2100 | 3.3~0.29 |
| CDRH73 | 7.3*7.3*3.5Max | 1.0~1500 | 185~11200 | 5.0~0.14 |
| CDRH74 | 7.3*7.3*4.5Max | 1.0~1000 | 15~6000 | 8.0~0.18 |
| CDRH75 | 7.3*7.3*5.6Max | 1.0~1000 | 121~4300 | 9.0~0.3 |
| CDRH124 | 12.0*12.0*5.0Max | 3.9~330 | 15~990 | 6.5~0.5 |
| CDRH125 | 12.0*12.0*6.0Max | 1.3~1000 | 12~1530 | 8.0~0.4 |
| CDRH127 | 12.0*12.0*8.0Max | 1.2~1000 | 7~1820 | 9.8~0.55 |
| CDRH129 | 12.0*12.0*10.0Max | 1.0~3300 | 5.5~4600 | 19.9~0.3 |
