Axial Resistor

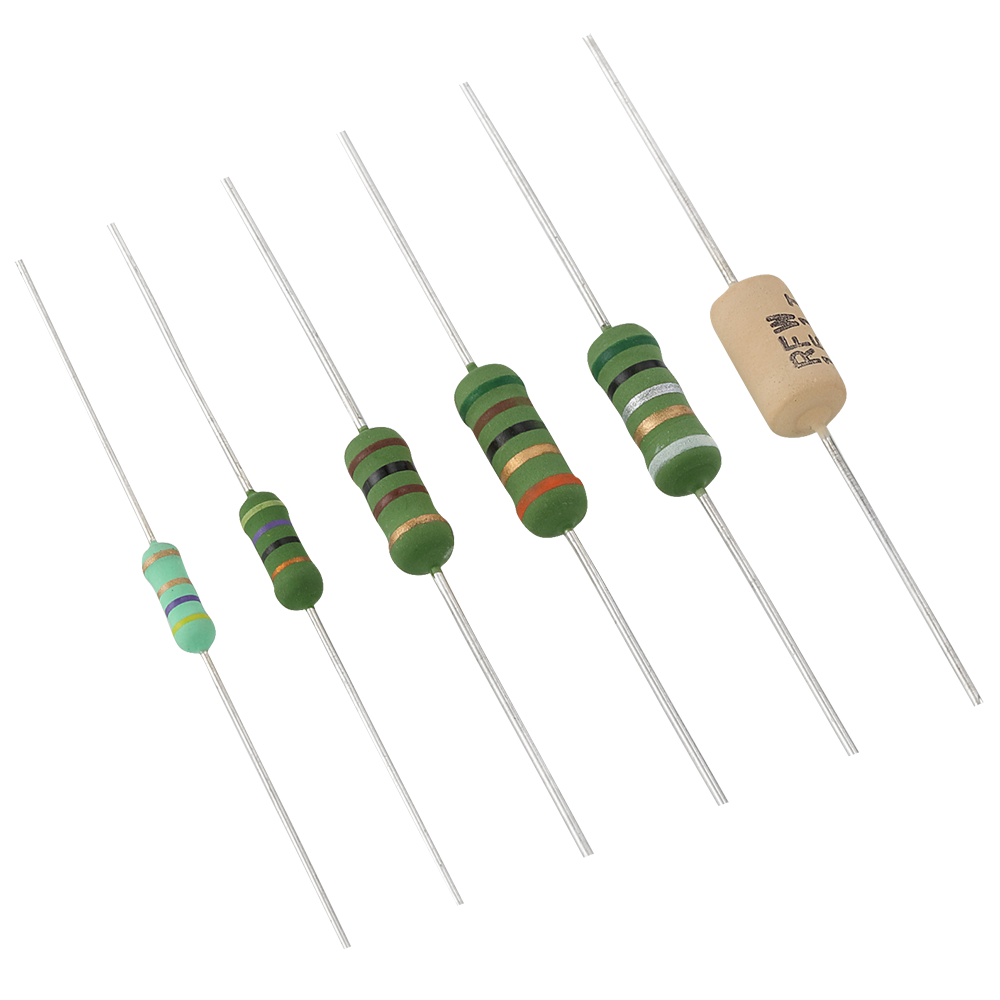

Most standard resistors are typically manufactured with axial leads. The leads extend horizontally from the body of the part. These parts are used in the through-hole design of the PCB. This mounting design has the leads bent downward for insertion. Since the part is shipped without any bends, it provides the end user with the option to bend and mount it according to their application.

Axial leaded resistors offer a unique solution in applications that have traditionally used carbon components, often replacing two or more with a single ceramic resistor. Some areas where axial leaded resistors are used include test equipment, high voltage power supplies and cable connectors, soft start, pulse waveforms, EMF/RFI test circuits, high voltage power supplies, and RC buffer circuits. These ceramic axial leaded resistors perform well in situations that require the use of smaller size resistors to handle high peak power or high energy pulses. These non-inductive axial leaded resistors dissipate energy uniformly through the entire resistor body.

For more information about Axial Leaded Resistors, please contact us.

About Us

Allen manufactures non-inductive, special purpose and industrial resistors that have been used in many applications, including high power and high energy surge applications such as energy transmission and distribution systems, and wind power systems.

Product Characteristics

Resistance400K ohm
Power (Watts)1/8W, 0.125W
Temperature Coefficient (ppm/degC)+/-25ppm
Operating Temperature-55 ~ +155 degC
Package / CaseAxial Leaded
ApplicationGeneral Purpose
Mounting TypeThrough Hole
Body Diameter1.8mm
Body Length3.4mm
Lead Length (per side)29mm
Working Voltage – max.150V
Overload Voltage – max.300V
Dielectric Withstand Voltage300V
Qty Per Reel (pcs)5000
PackagingTape and Reel
Part StatusActive
