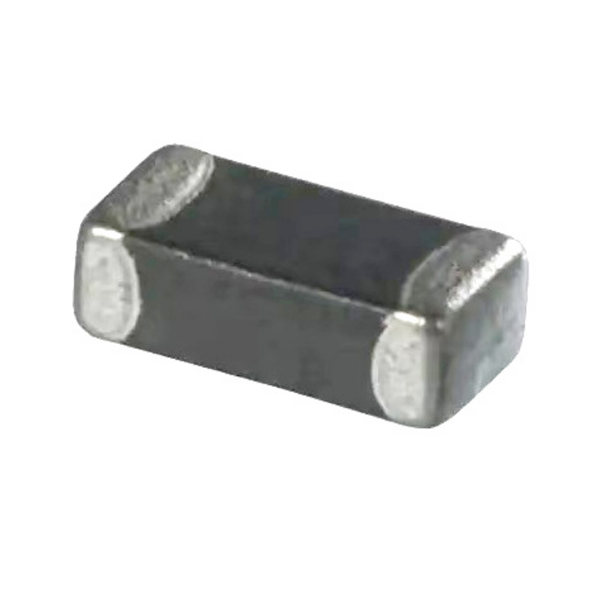

Home >> Products >> Inductor >> EMI Filters >> Chip Bead >> UMCB Series, Chip Beads
FEATURES:
● Internal silver printed layers and magnetic shielded structures to minimize crosstalk.
● Can be used in a wide range of frequencyto suppress EMI.
● Smaller DC resistance and larger allowable current.
● Operating temperature:-55℃~+125℃.
APPLICATIONS:
Noise suppression for power line or large current signal of electric equipments such as computers and peripheral devices,DVD cameras,LCD TVs,communication equipments,OA equipments,etc.
Series | Size(mm) | Impedance(Ω) | DCR(Ω) | Irms(A) |
UMCB0603 | 0.6*0.3*0.3 | 22~120 | 0.04~0.16 | 1.8~0.9 |
UMCB1005 | 1.0*0.5*0.5 | 0~1000 | 0.02~0.65 | 2~0.3 |
UMCB1608 | 1.6*0.8*0.8 | 0~1000 | 0.01~0.35 | 6~0.7 |
UMCB2012 | 2.0*1.2*0.9 | 0~1000 | 0.01~0.12 | 6~1.5 |
UMCB3216 | 3.2*1.6*0.9 | 0~1000 | 0.01~0.12 | 6~2.1 |
UMCB3225 | 3.2*2.5*1.3 | 11~1000 | 0.02~0.23 | 6~2.5 |
UMCB4516 | 4.5*1.6*1.6 | 19~80 | 0.009~0.025 | 6~3 |
UMCB4532 | 4.5*3.2*1.5 | 19~600 | 0.01~0.08 | 6~4 |
