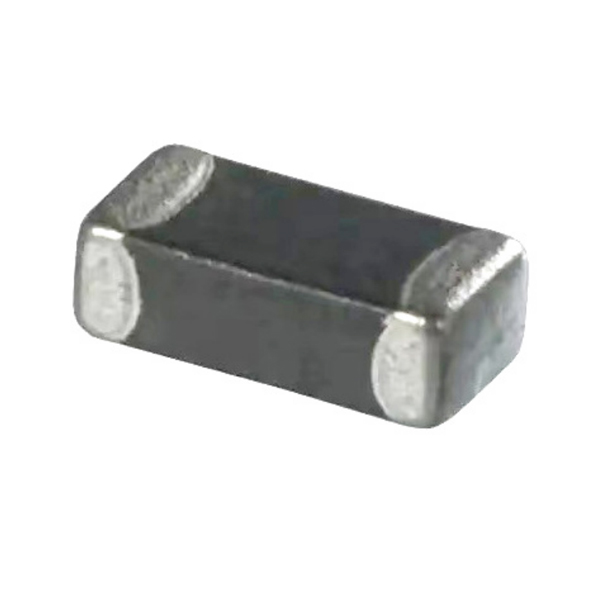

Home >> Products >> Inductor >> EMI Filters >> Chip Bead >> MCB Series, Chip Beads
FEATURES:
● Internal silver printed layers and magnetic shielded structures to minimize crosstalk.
● Can be used in a wide range of frequencyto suppress EMI.
● Smaller DC resistance and larger allowable current.
● Operating temperature:-55℃~+125℃.
APPLICATIONS:
Noise suppression for power line or large current signal of electric equipments such as computers and peripheral devices,DVD cameras,LCD TVs,communication equipments,OA equipments,etc.
Series | Size(mm) | Impedance(Ω) | DCR(Ω) | Irms (A) |
MCB0603 | 0.6*0.3*0.3 | 10~1000 | 0.05~1.25 | 1~0.2 |
MCB1005 | 1.0*0.5*0.5 | 0~1000 | 0.04~0.9 | 1.8~0.25 |
MCB1608 | 1.6*0.8*0.8 | 0~2500 | 0.02~0.65 | 3~0.4 |
MCB2012 | 2.0*1.2*0.9 | 0~2500 | 0.02~0.45 | 3~0.6 |
MCB3216 | 3.2*1.6*0.9 | 0~3000 | 0.04~0.9 | 4~0.2 |
MCB3225 | 3.2*2.5*1.3 | 11~1000 | 0.03~0.28 | 5~2 |
MCB4516 | 4.5*1.6*1.6 | 19~600 | 0.015~0.2 | 6~1.5 |
MCB4532 | 4.5*3.2*1.5 | 26~600 | 0.02~0.1 | 5~1 |
