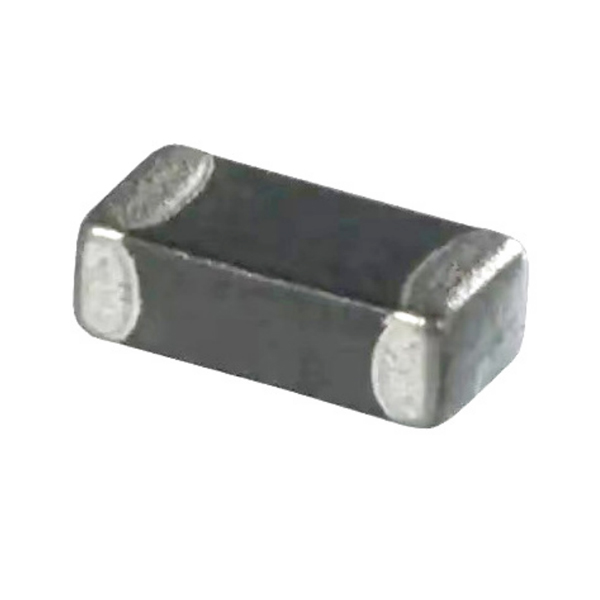

Home >> Products >> Inductor >> EMI Filters >> Chip Bead >> FCB Series, Chip Beads
FEATURES:
● Internal silver printed layers and magnetic shielded structures to minimize crosstalk.
● Can be used in a wide range of frequency to suppress EMI.
● Operating temperature:-55℃~+125℃.
APPLICATIONS:
Noise suppression for signal line of electric equipments such as computers and peripheral devices,DVD cameras,LCD TVs,communication equipments,OA equipments,etc.
Series | Size(mm) | Impedance(Ω) | DCR(Ω) | Irms (A) |
FCB0603 | 0.6*0.3*0.3 | 10~1000 | 0.1~2.5 | 0.5~0.1 |
FCB1005 | 1.0*0.5*0.5 | 0~1000 | 0.05~1.4 | 0.5~0.1 |
FCB1608 | 1.6*0.8*0.8 | 0~2500 | 0.05~1.3 | 2~0.05 |
FCB2012 | 2.0*1.2*0.9 | 0~3000 | 0.04~0.6 | 2.2~0.02 |
FCB3216 | 3.2*1.6*0.9 | 0~3000 | 0.1~1.5 | 2.2~0.05 |
FCB3225 | 3.2*2.5*1.3 | 19~1000 | 0.1~0.4 | 1~0.3 |
FCB4516 | 4.5*1.6*1.6 | 19~800 | 0.1~0.55 | 1~0.2 |
FCB4532 | 4.5*3.2*1.5 | 38~600 | 0.15~0.4 | 1~0.2 |
